Fully automatic Zee purline rolling forming machine

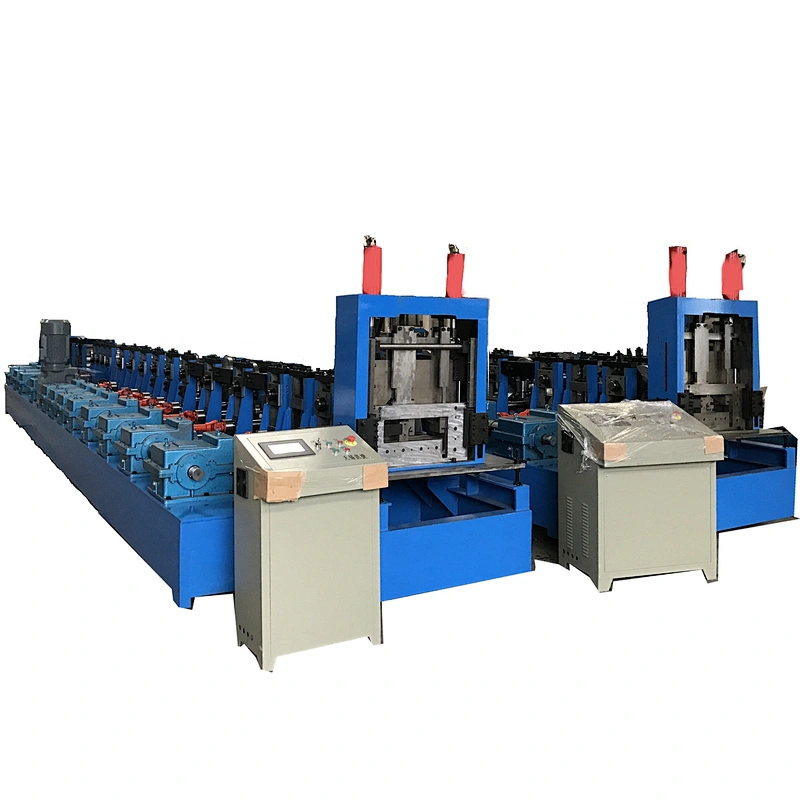

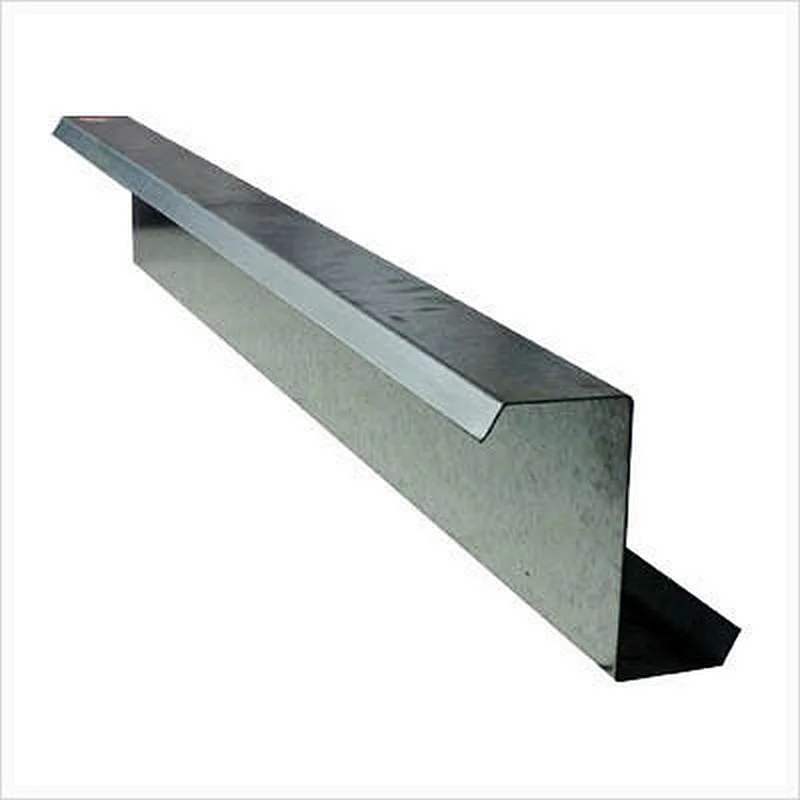

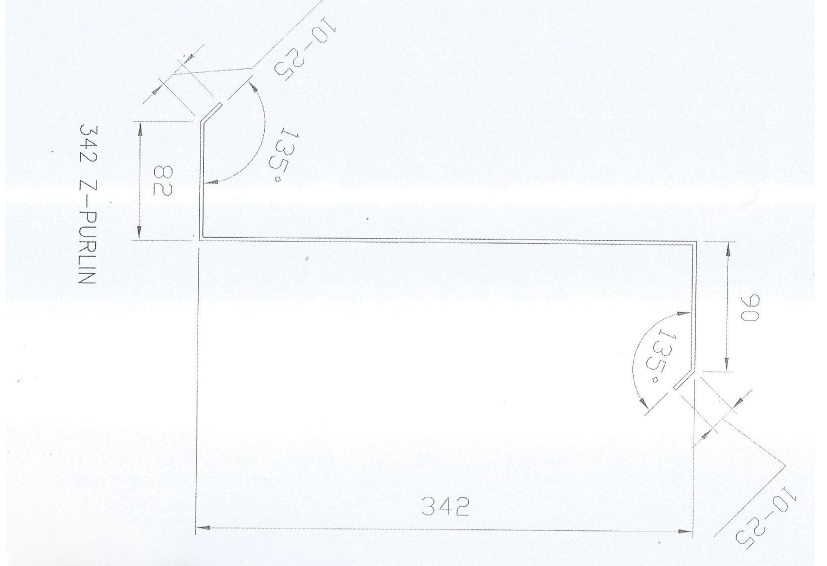

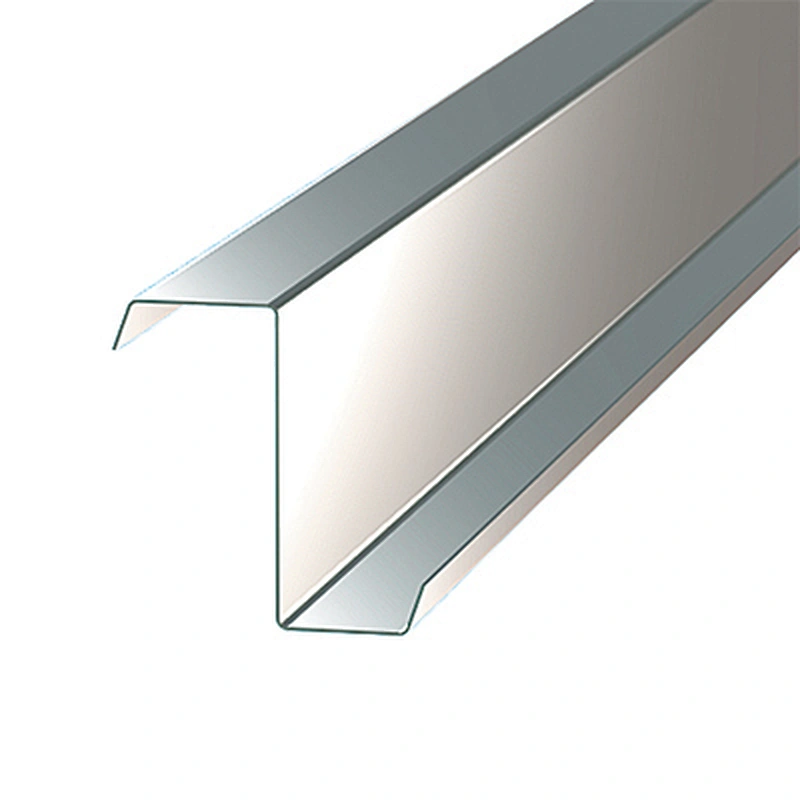

Fully automatic Zee purline rolling forming machine is professionally designed to make the Z purline in batch. It allows to do online punching, online punching logos. It composed by the following elements: decoiler, guiding platform,main machine of roll forming, cutting device, electric motor,hydraulic station,Delta PLC control system, run out table. Take the following drawing profile for example:
Z purline machine working process:

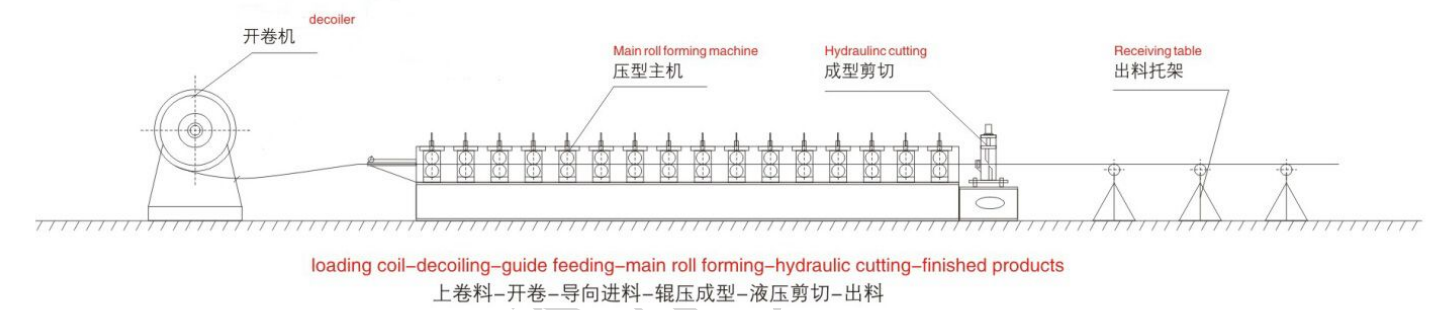

Decoiler→ → Feeding material into machine →Roll forming machine →Measure length →Hydraulic cutting →Finished Products

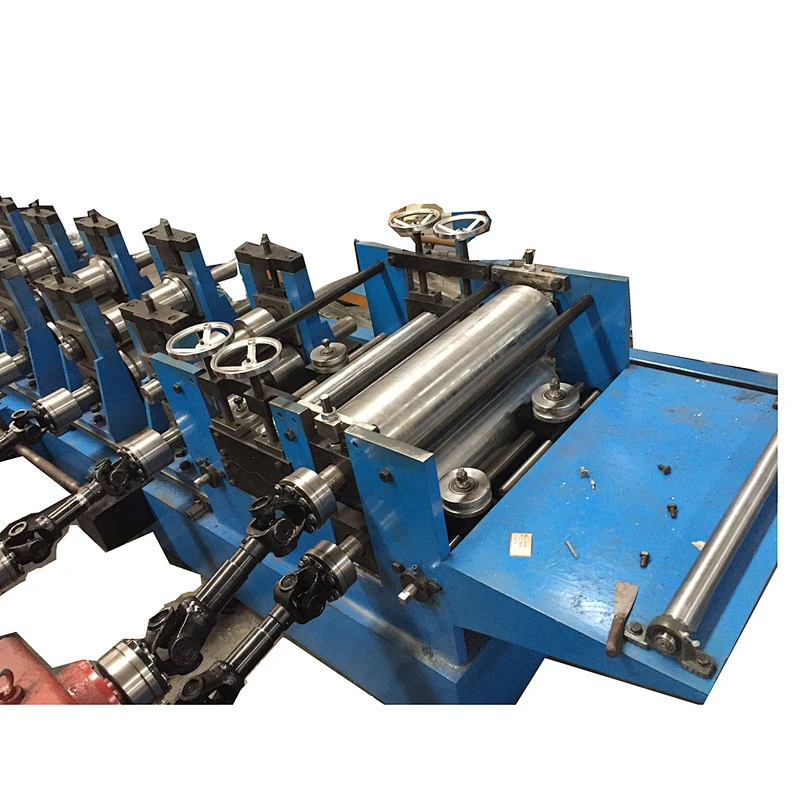

Zee purline rolling forming machine:

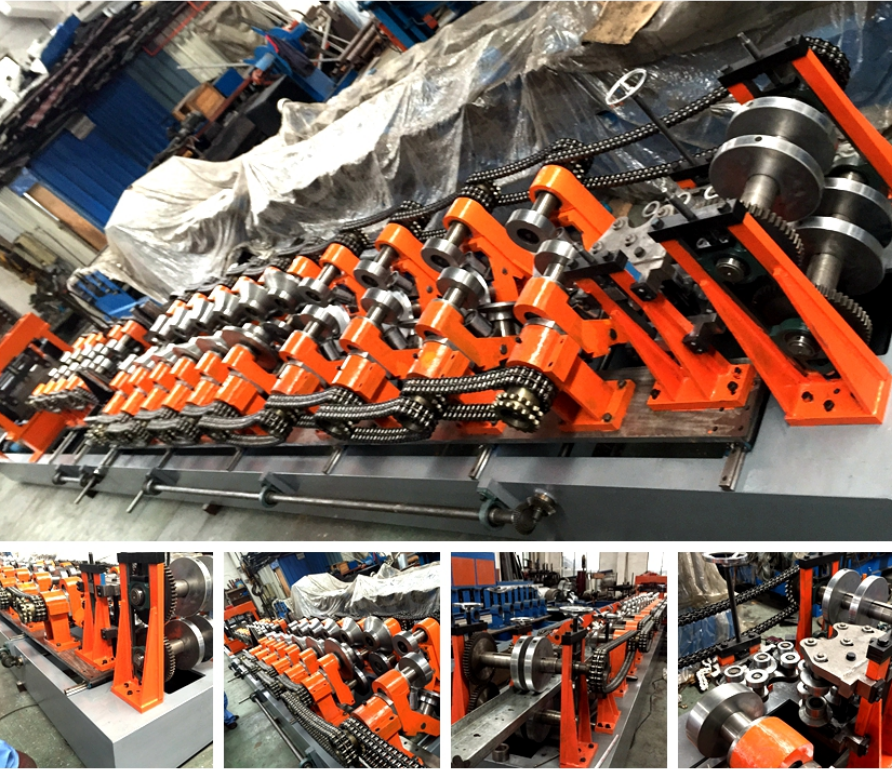

Fully Automatic Changed Z Shape Purlin Roll Forming Machine:
Main Technic Parameter:
Size | 7800*1500*1600mm |
Weight | 9000KGS |
Voltage | 380V/60HZ/3PH |
Hydraulic Motor Power | 22KW |
Motor Power for auto adjustment size | 0.37KW*2+0.75KW |
Motor Power for auto guide device | 0.18KW*2 |
Motor Power for auto adjustable hole distance device | 0.18KW*2 |
Forming Steps | 13steps+3steps for reshaping |
Forming Speed | 15m/min |
Edge for Z purline | 15-25mm |
Height of Z Purline | 30-70mm |
Width of Z Purline | 100mm-300mm |
Forming Thickness | 1.0-3.0mm |
Tolerance for cutting | ±2.0mm |
Tolerance for Forming | ±2.0mm |
Straightness | 2mm/m |
Material for All Roller | Gcr15 steel with heat treatment |
Material of principal axis | High grade 45# forged steel |
Sprocket wheel | 45# steel high-frequencies quench |
Cut-off system | Hydraulic cutting device |
Material for Blade | Cr12 mold steel with quenched treatment 60-62°C |
Material for frame of machine | Fine welded structural steel; |
Material for producing the Z Purline | GI Steel with Min.420 Mpa ( JIS G 3302 SGC440 OR EN 10346 S350GD ) |
Painted Color | Red or Customization |
Main Accessories:
(1) Main Purline Forming Machine; |
(2) 5 Tons Manual Uncoiler ; |
(3) Automatic Guide Device; |
(4) Hydraulic Motor System; |
(5)PLC Computer Controlling System With Touch Screen ; |
(6) Automatic Adjustable Hole Distance Device; |
(7) Hydraulic Pre-punching Holes Device; |
(8) Hydraulic Pre-cutting Device |
(9) Reshaping Device; |
(10) Rib Rollers; |
(11) Run Out Table(10 pcs); |
(12) Tools; |
(13) Operation Manual,drawing for changing parts |
(14) Free supply 10pcs bearing, 1.5m chain, 10pcs chain connection pins; |
(15) Operation Manual. |

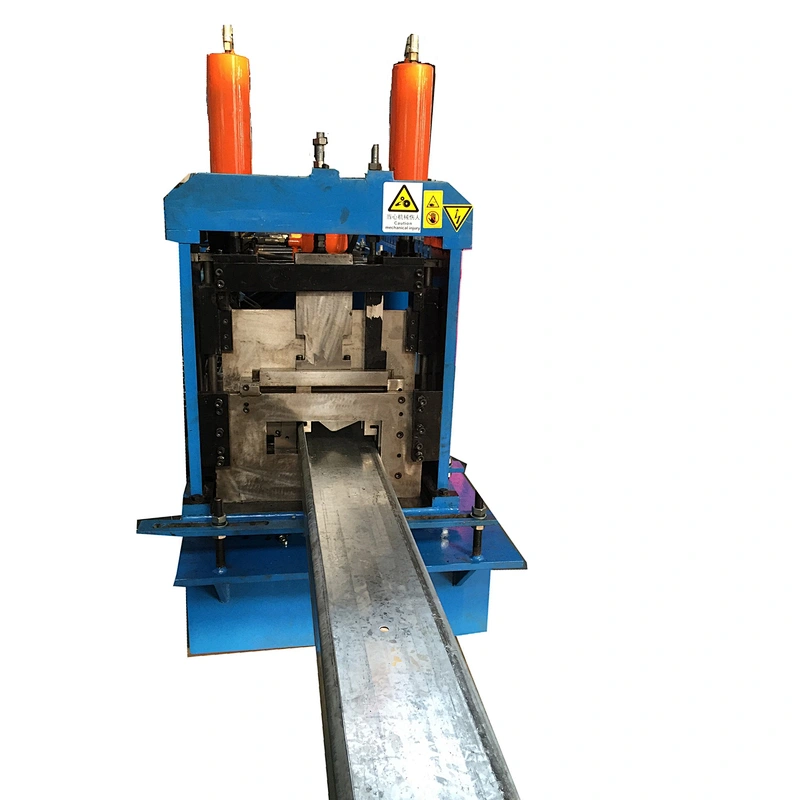

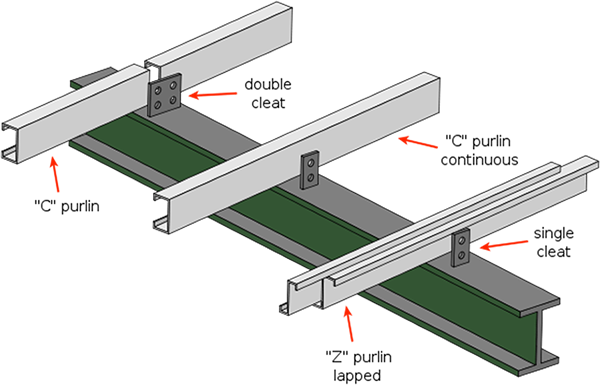

Here is the Z purline using manual in working status.
Fully automatic Zee purline rolling forming machine working video for your reference:
https://youtu.be/lpsxml9pNqg
