Description
It is refined with high-quality cold-rolled continuous hot-dip galvanized steel strip as raw materials. It not only has uniform material, high strength, good toughness, high-quality double-sided galvanized layer, good rust resistance, but also has accurate dimensions, good straightness, and board surface. Flat, so that the installed gypsum board will not bend or deform, and effectively prevent cracking.
Raw material | GI |
Material thickness | 0.4-0.6 mm |
Cutting length | Adjustable |
Drawing profile
Packing list- wall angle roll forming machine | ||||
No. | Name | Unit | Quantity | Remark |
Part 1 | 1.5 T decoiler | set | 1 | Manual |
Part 2 | Main roll forming machine | set | 1 | High speed |
Part 3 | PLC control station | set | 1 | Delta brand |
Part 4 | Cutting system | set | 1 | Hydraulic |
Part 5 | Product table | set | 1 | Regular |

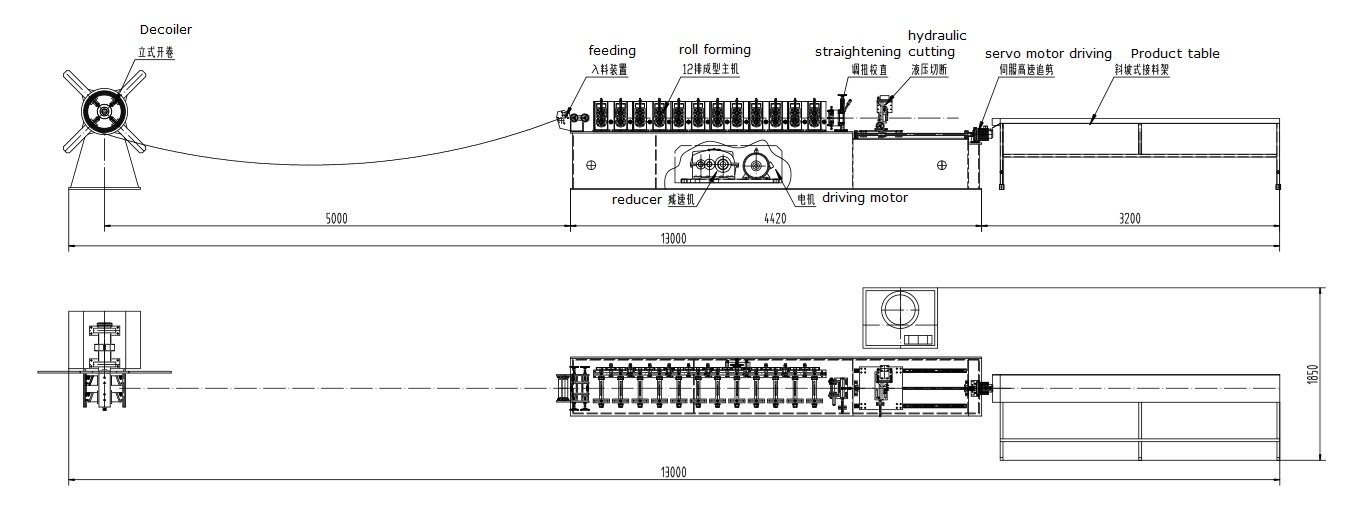

The work flow for wall angle roll forming machine

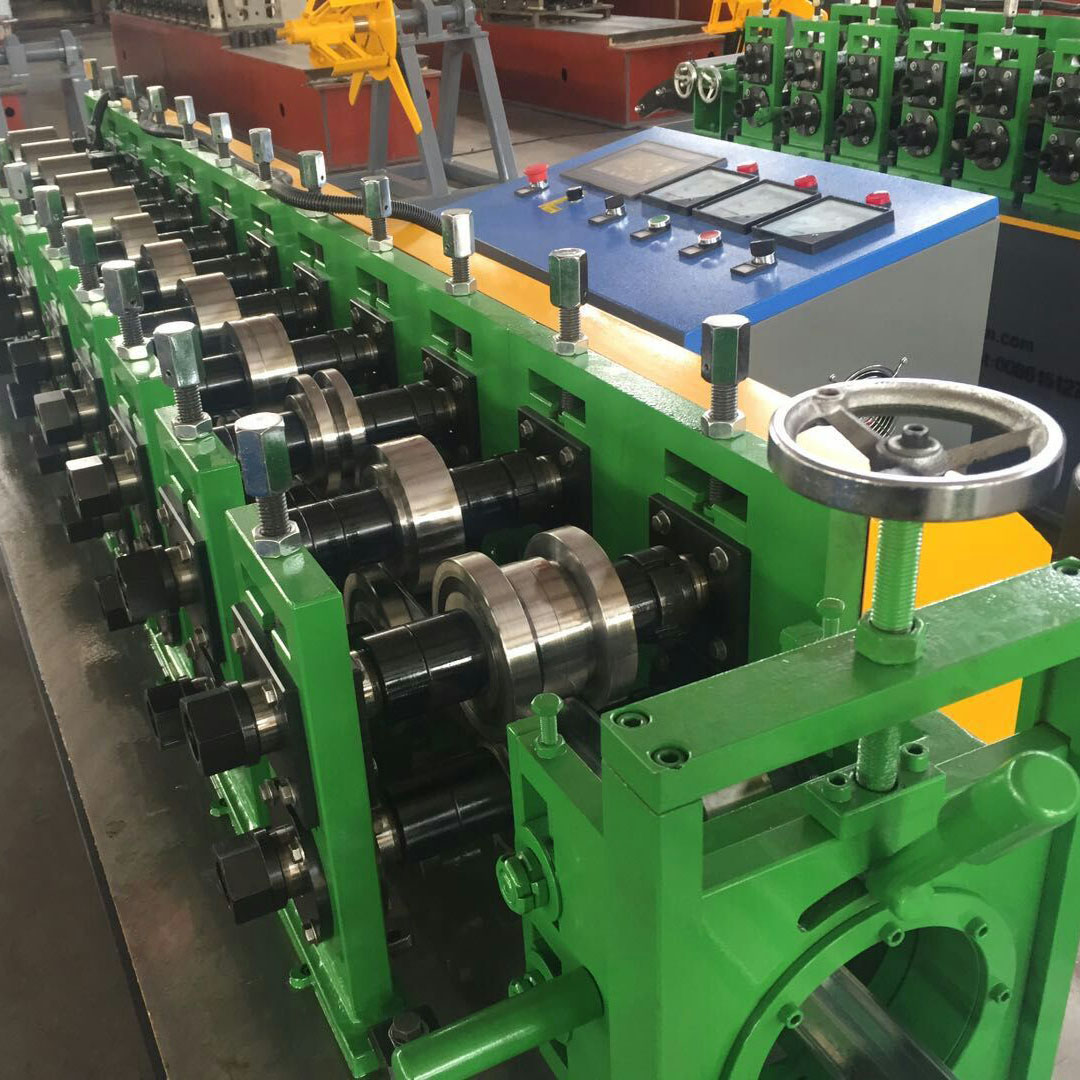

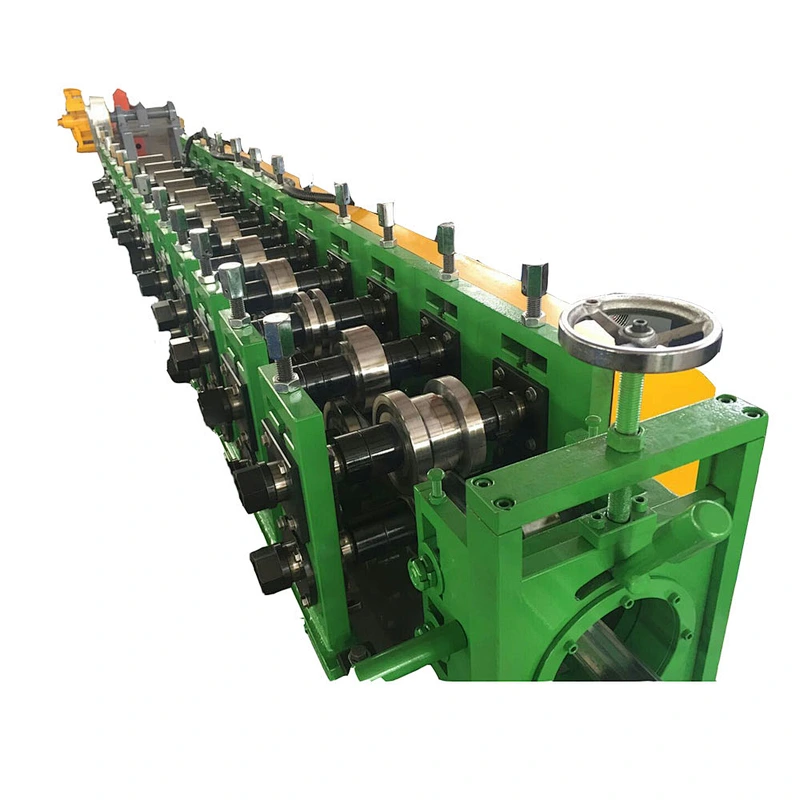

Main roll forming machine（picture for reference）

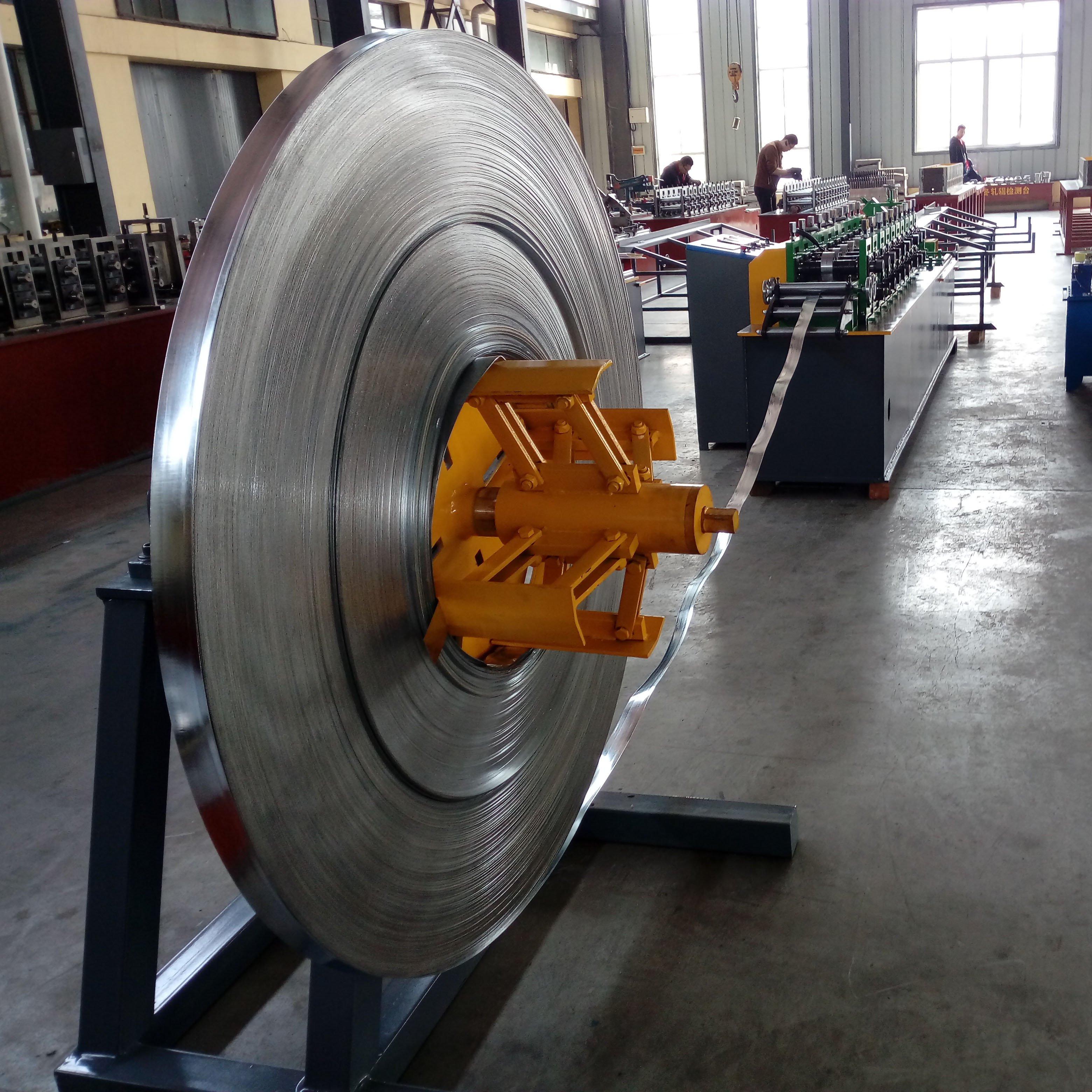

1.5 Tons manual Decoiler
Type: passive
Coil width: max 400 mm
Loading capacity: 1.5 tons
Inner diameter: 450-550 mm
PLC control system
Frequency brand | DELTA |
PLC brand | DELTA |
Screen type | Touch screen |
Screen language | English/Chinese/As required |
Encoder | Omron |
Low pressure electrical part | Schneider |
Function | Control the cutting length and quantity, speed adjustment |

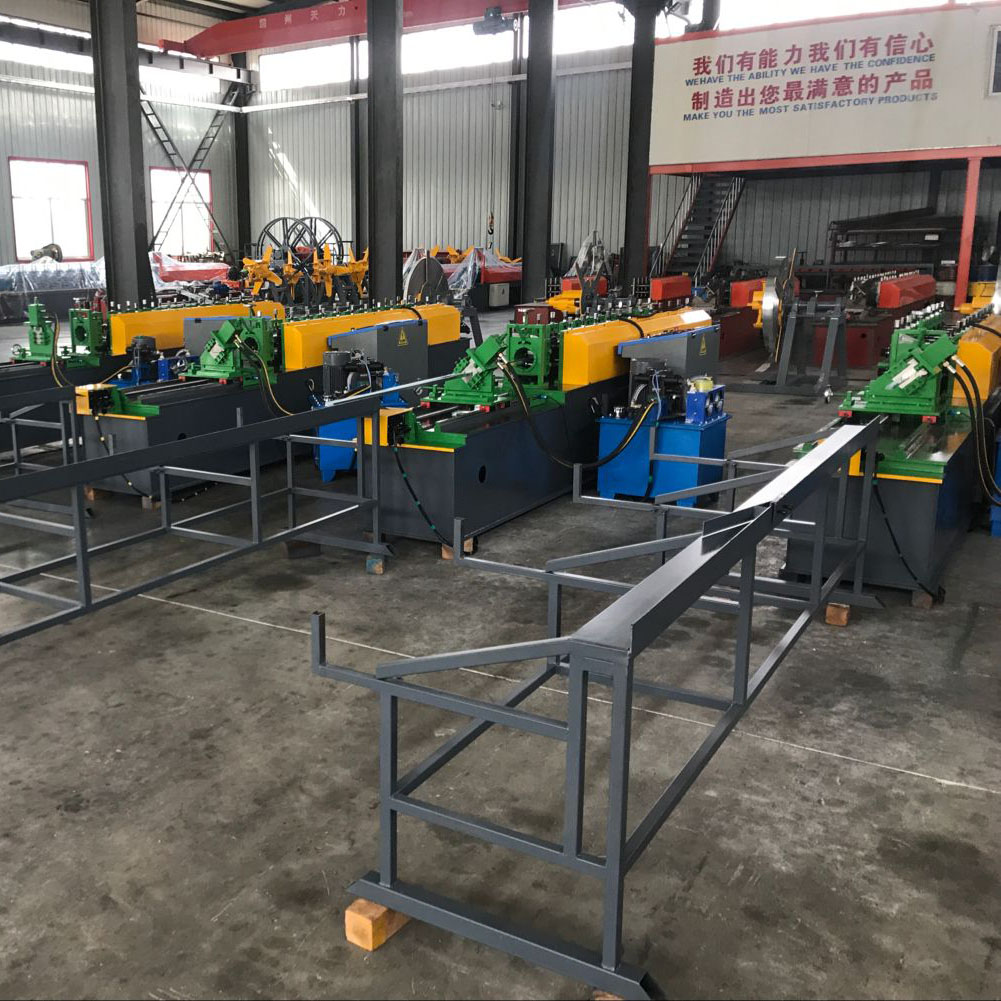

Product table
Table length: 3000 mm |
Table total width: 500 mm |
Table material: square pipe welded |
More detail for reference

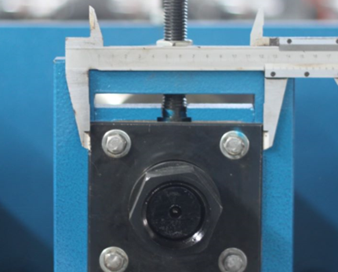

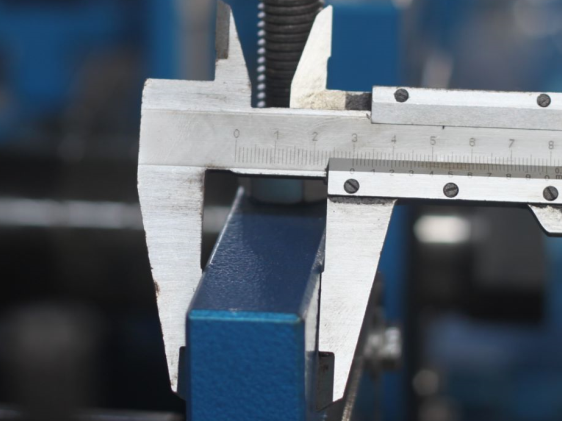

Thick molding frame for high speed when Strong tile box
running, steady

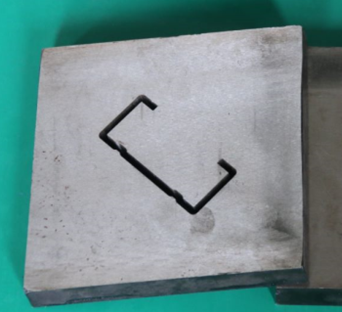

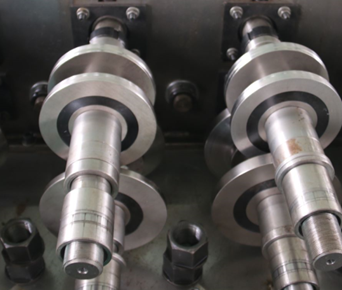

With bearing inside of rollers for high speed and Very thick cutting blades.
same speed and GCR12mov rollers for long time
to use
Packaging Details:
1. One *20GP container for loading one set of machine with mechanical decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3.Spare parts and some small parts packed in plastic tooling box;
4.All Components Fixed by steel wire with Container. Suitable for long time sea shipping.
Delivery Time
Machine ready within 60 days after getting 30% deposit and confirming contract details from buyer and sellers.
