C/ U/ L/W light gauge steel channel frame roll forming machine

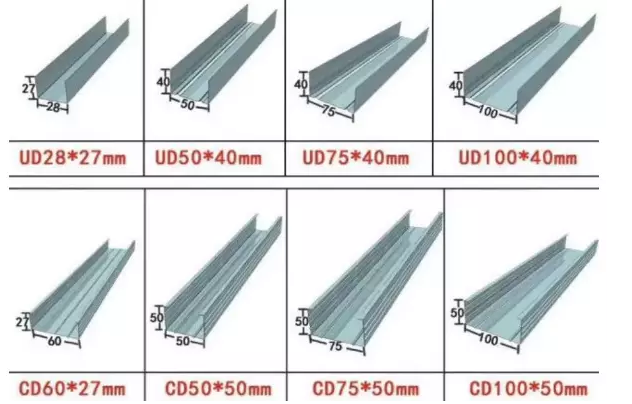

Our C/ U/ L/W light gauge steel channel frame roll forming machine produce like Stud, track, Omega, Angle as so on. This C/ U/ L/W channel machine/ stud and track machine/ drywall profile roll forming machine working space are smaller than two seperate machines. And at the same time the price is also cheaper than two seperate machines. Take the following drawing profiles and then you can understand what we refer to:
C/ U/ L/W light gauge steel channel frame roll forming machine feature:
- According to the market, now our light gauge steel channel frame roll forming machine have the following speed options: like 25 meter per minute, 50 meter per minute and 80 meter per minute.
- For the U channel, normall speaking it has fully autoamtic size changing and manual sizes changing by the adjustments of the spacer.
- One machine allows you to make many sizes and shapes.

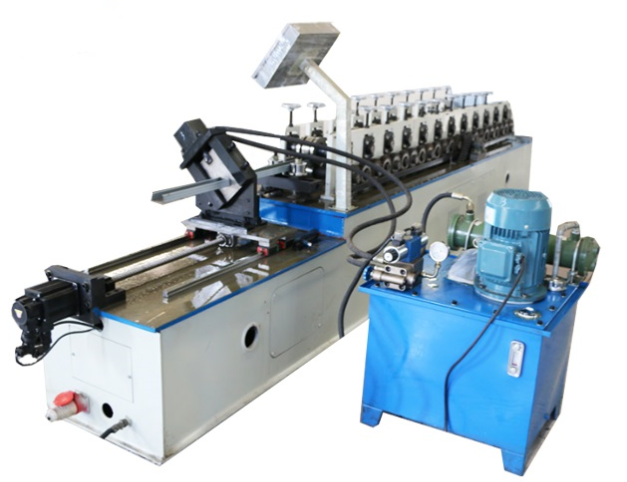

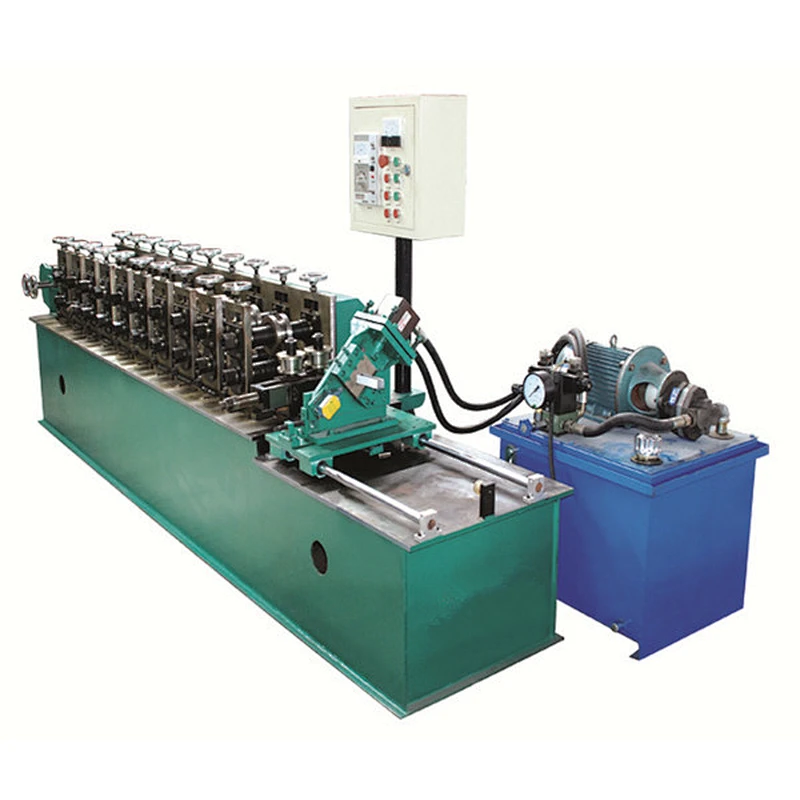

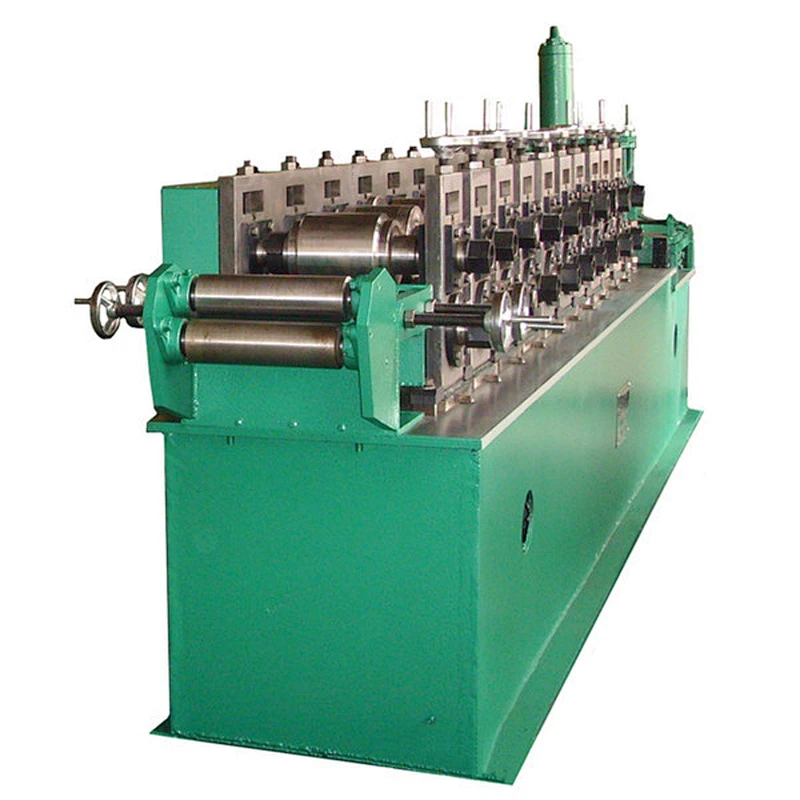

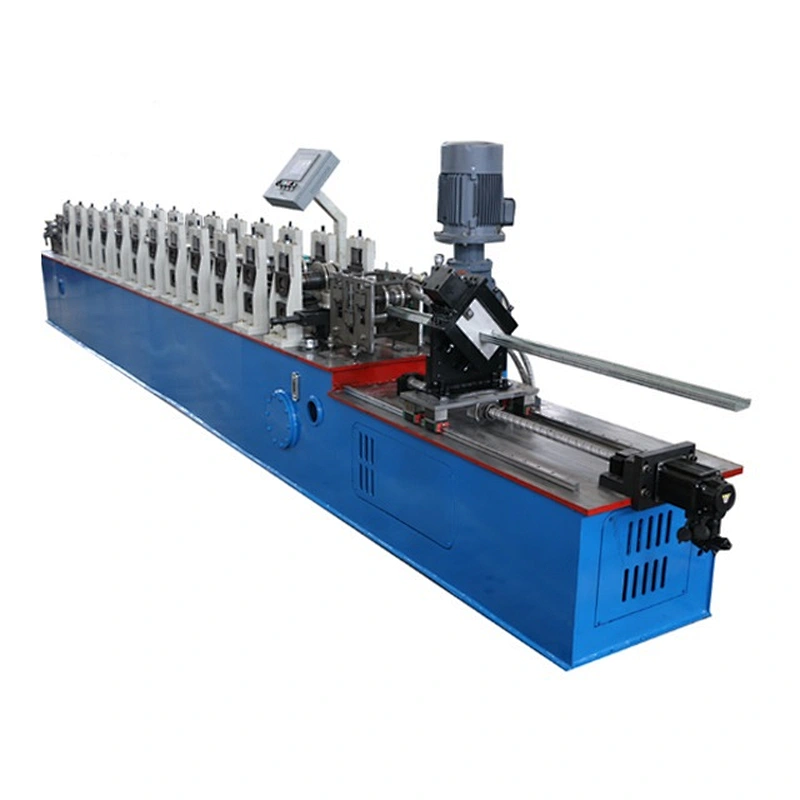

Here is the machine picture for your reference:
No. | c u l w light gauge steel channel frame roll forming machine for roof | |
1 | Suitable material | PPGI/Aluminium sheet/galvanized sheet/various sheet plates |
2 | Thickness of coil sheet | 0.3-0.8mm |
3 | Coil width | as customer's profile drawing requirement |
4 | Effective width | as customer's profile drawing requirement |
5 | Material of main frame | welded by 6mm steel plate |
6 | Diameter of Soild shaft | 40mm, high grade 45# steel |
7 | Roller | Cr12 |
8 | Thickness of middle plate | Memorial archway |
9 | Forming station | 12 rows |
10 | Drive type | Gear |
11 | Power of main motor | 5.5 kw, Lichao, Shanghai, with reducer |
12 | Servo motor | 1.5KW |
13 | Forming speed | About 25-30m/min |
14 | Hydraulic pump station | 5.5 kw, 40# hydraulic oil |
15 | PLC | DELTA(TAIWAN)/Mitsubishi |
16 | Material of cutting blades | Cr 12, quenching 58-62℃ |
17 | Frequency converter | It has the advantage of slowing down before cutting, to ensure the length accuracy ±1mm, far better than industrial standard ±3mm. |
18 | Switch | CHNT |
19 | Frequency changer | Delta,Taiwan |

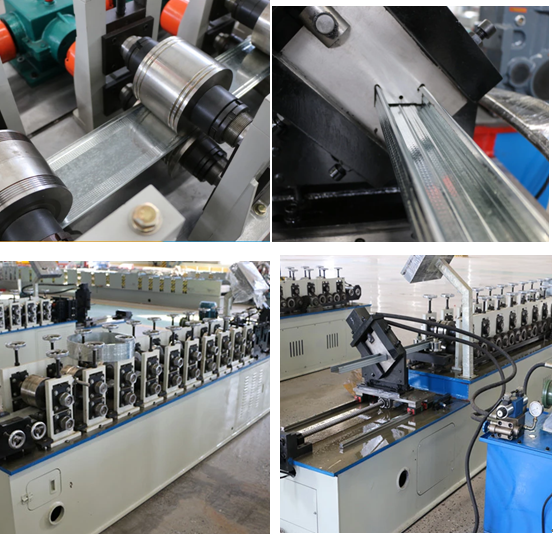

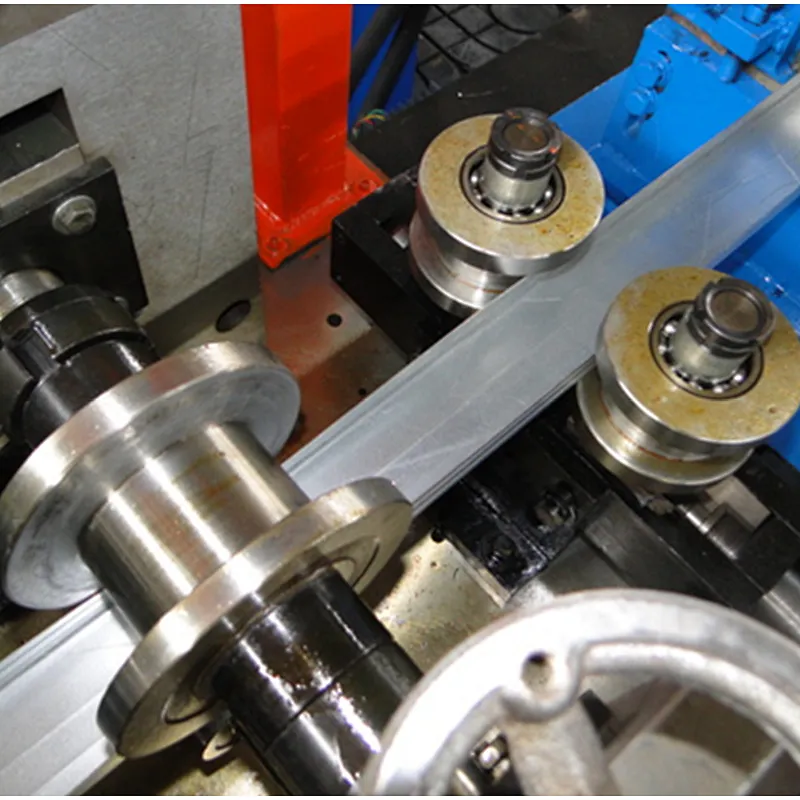

More detail pictures of C/ U/ L/W light gauge steel channel frame roll forming machine for your reference:
