C Purline machine with Multi-punching

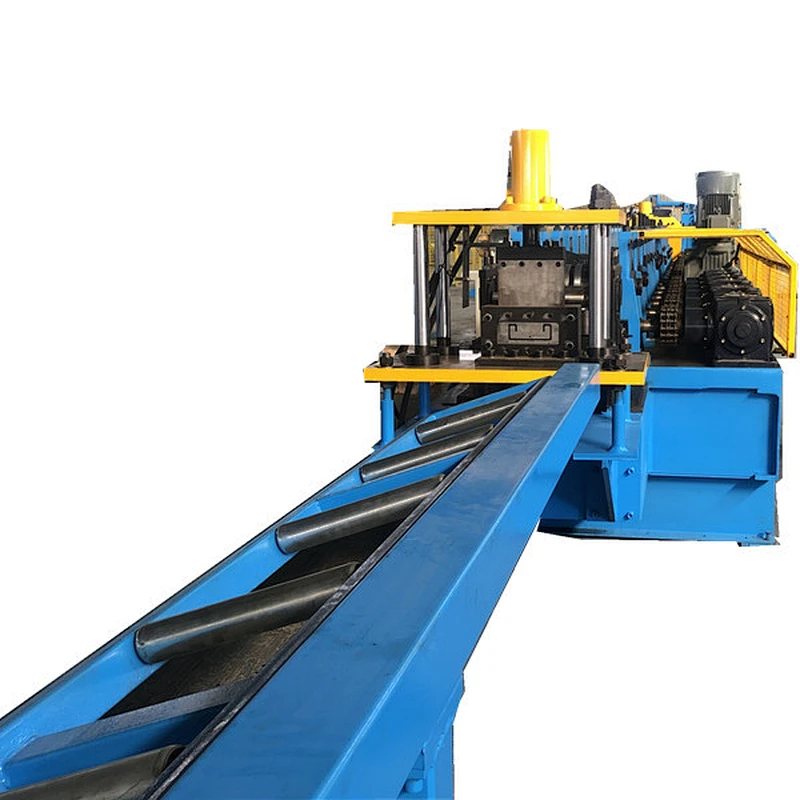

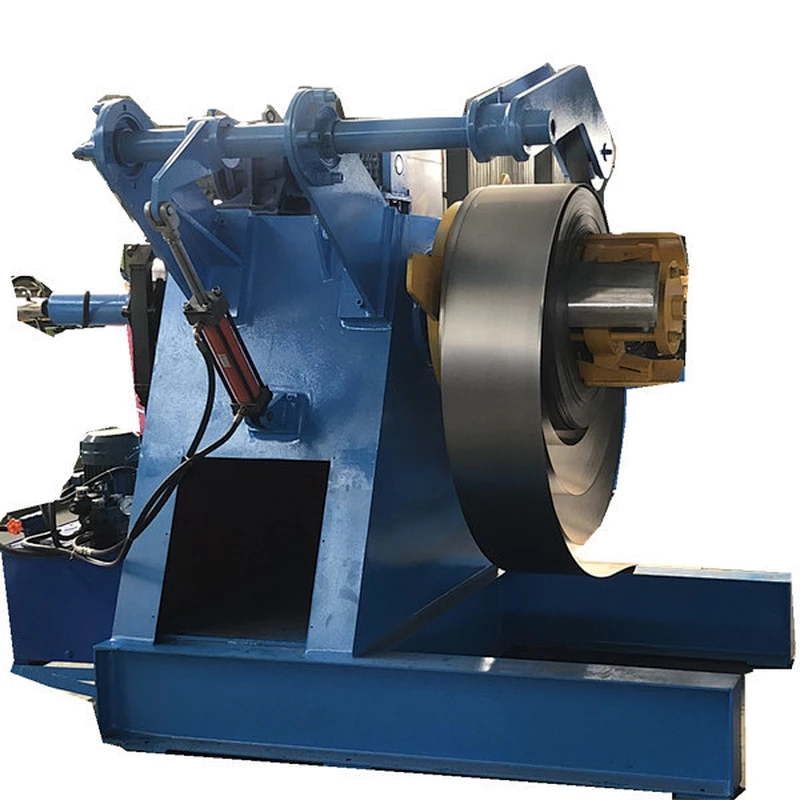

Automatic C Purline machine with Multi-punching is designed to make the C purline machine in various sizes with many types of punching hole. In the market, there are many types C purline machine, like CZ purline machine, Z purline machine, either in the manual adjustment way or the fully automatic method. Here the machine I share we designed for France, Various type C purline with the Multi-punching, the size adjustment by button control and by PLC control both, no need the manual work.

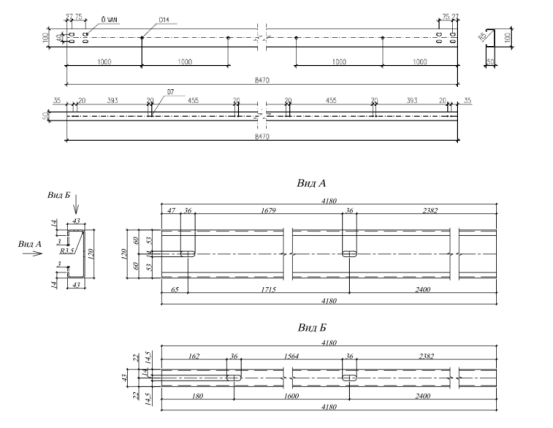

Take the following C purline drawing for your reference:

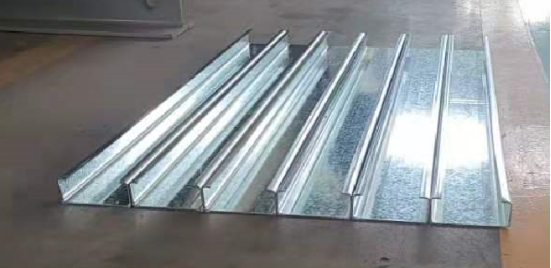

C Purline Finished Product:
C Purline machine Design:
Features of C purling Machine:
Here are more details about the C purline machine for your reference:

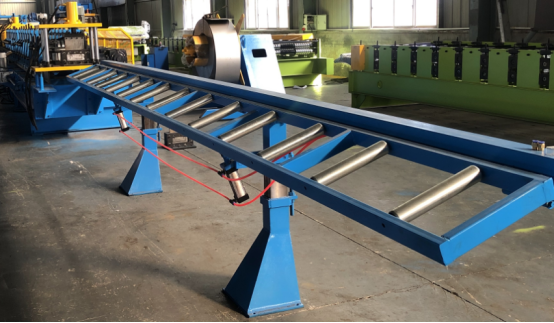

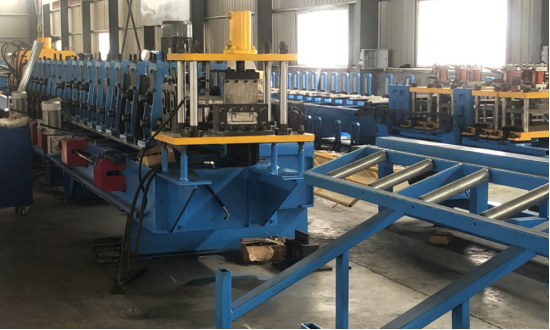

Automatic stacker will help receiving the C purline orderly.
For the C purline machine, CZ purline machine, if you need more types, please contact us at any time.
Automatic C Purline machine with Multi-punching is designed to make the C purline machine in various sizes with many types of punching hole. In the market, there are many types C purline machine, like CZ purline machine, Z purline machine, either in the manual adjustment way or the fully automatic method. Here the machine I share we designed for France, Various type C purline with the Multi-punching, the size adjustment by button control and by PLC control both, no need the manual work.
Take the following C purline drawing for your reference:
C Purline Finished Product:
C Purline machine Design:
Features of C purling Machine:
- Working speed is around 15 to 25 meter per minute.
- Use the molding frame, the thickness of frame is around 35 to 45mm.
- Use the gearbox as transmission.
- Use the hydraulic shearing system.
- Use the automatic stacker.
- The punching are before punching.
- The sizes are controlled by PLC or button control.
| C Purline machine Basic Parameters | |
| Forming station | 14 stations |
| Forming Rollers | GCr15, heat treatment and hard chrome-plated ,HRC55-58 |
| Main shaft material | S45C, heat treatment HRC42 Φ80mm |
| Leveling roller | 5 rollers |
| Pinching device | 2 Steps of pinching |
| Punching hole | Punching before forming |
| Cutting sheet | Cutting after forming, stop to cutting |
| Forming speed | 0-18m/min |
| Producing speed | 0-12m/min |
| Main motor power | 15KW, Chinese famous brand |
| Transmission system | 1.0 double line chains |
| Control system | PLC Siemens brand |
| Dimension(L×W×H) | Approx.10000×1400×1600 mm |
| Weight | Approx.9500kg |
Here are more details about the C purline machine for your reference:

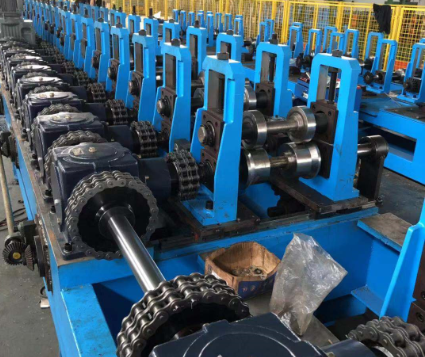

- Use the gearbox as transmission:

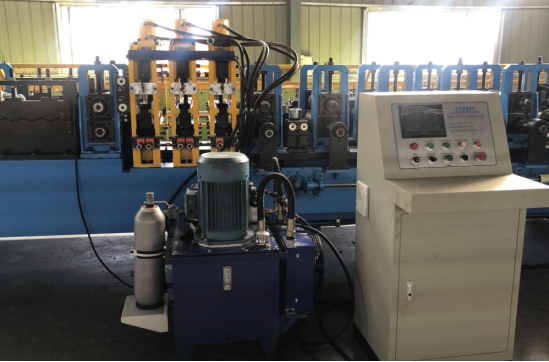

2.Punching station with the energy accumulator:
With this energy accumulator, the punching will not stop and then the punching speed could be doubled.Automatic stacker will help receiving the C purline orderly.
For the C purline machine, CZ purline machine, if you need more types, please contact us at any time.
