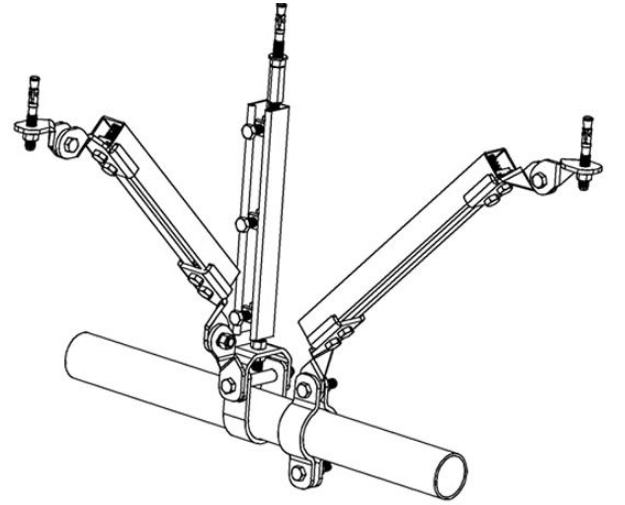

What is the Anti-vibration bracket C?

Anti-seismic brackets are various components or devices that limit the displacement of ancillary electromechanical engineering facilities, control the vibration of the facility, and transfer the load to the load-bearing structure.

After earthquake-resistant construction, the water supply and drainage, fire, heating, ventilation, air conditioning, gas, heat, electricity, communications and other mechanical and electrical engineering facilities, when encountering earthquakes in the earthquake-resistant intensity of the region, can reduce earthquake damage, reduce and Prevent the occurrence of secondary disasters as much as possible, so as to reduce the number of casualties and property losses.

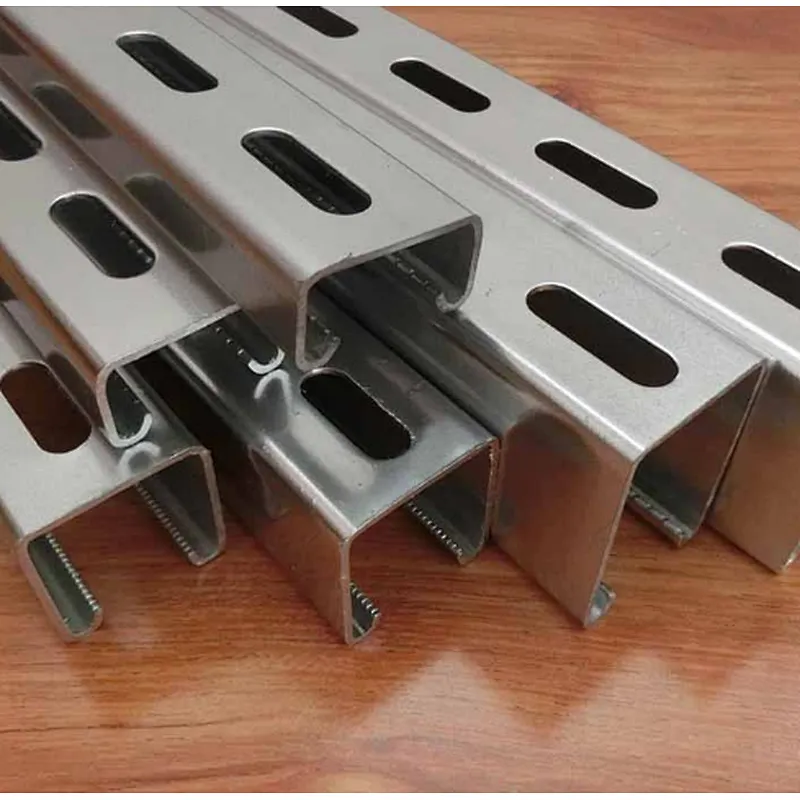

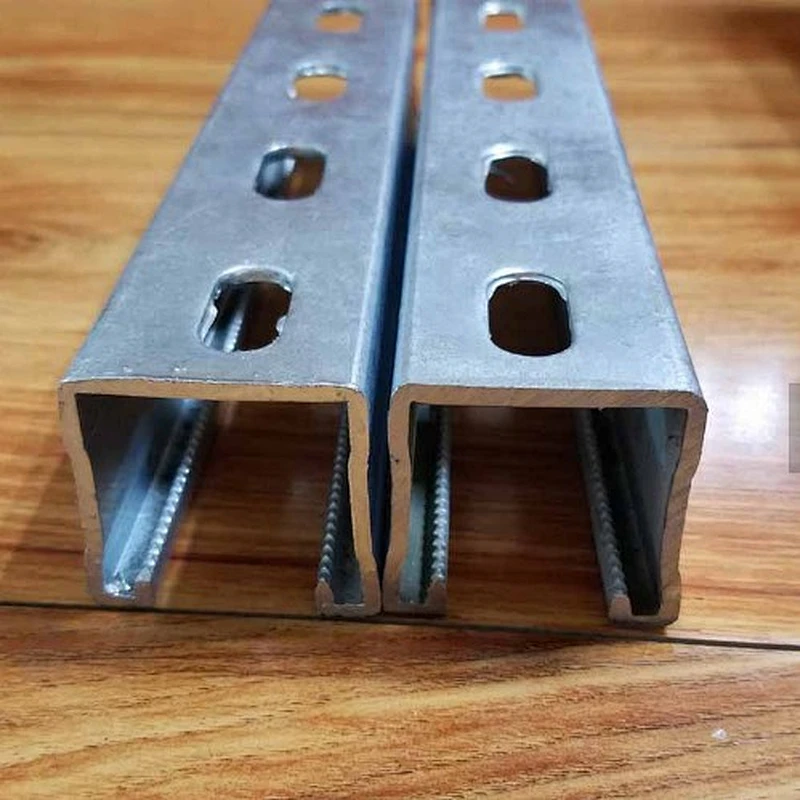

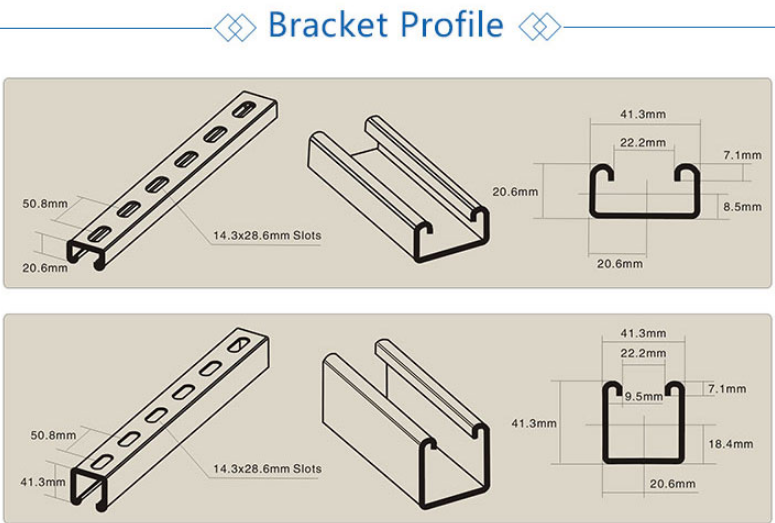

Here is some drawing profiles anti-vibration bracket C channel for your reference:

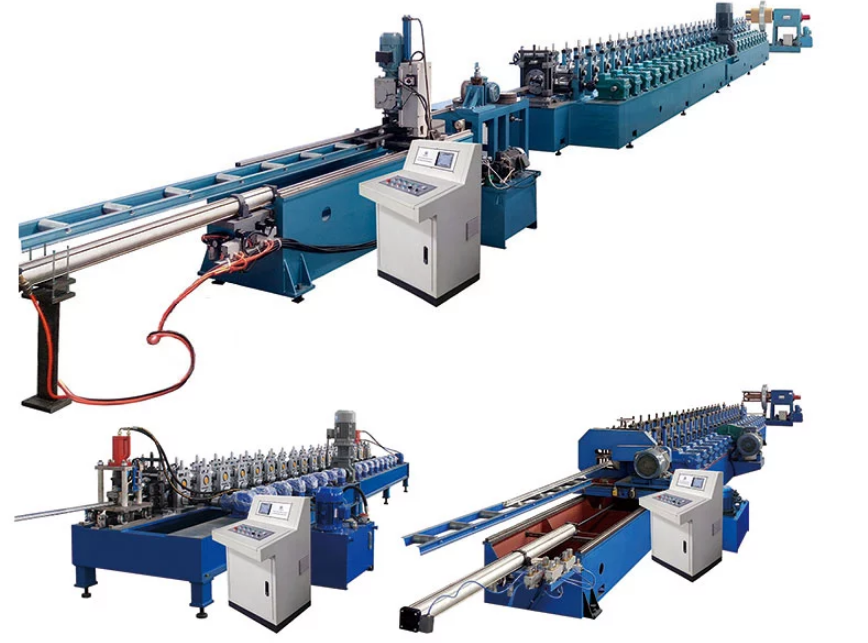

Based on the knowing of the Anti-vibration bracket C channel, we design the machine like the following:

Here are some parameters of Anti-vibration bracket C channel making machine for your reference:

MACHINE COMPONENTS:

4. Main forming machine      :

1) Forming steps: 16 steps

2) Outer diameter: 60mm
3) Machine frame (type): memorial arch frame, Thickness of memorial arch frame: 30mm

4) Roller information:
A. Raw material: GCr12MoV0

B. Quenched degree: 58-60°C

5) Shaft material: 40cr quencing.
6) Main motor power: 15kw, Reducer ratio: 1:14,

Reducer Type: Hardened reducer

Gearbox transmission:Gearbox transport

A. Gear material: 42Cr

B. Processing technical: hardening gear grinding processing

C. Gear lubrication system: automatic oil drip by computer control, oil drip time and amount can be controlled according the needs.

D.Gear cooling system: Automatic cooling circulation tank, which can guarantee not to exceed the gear temperature limit.

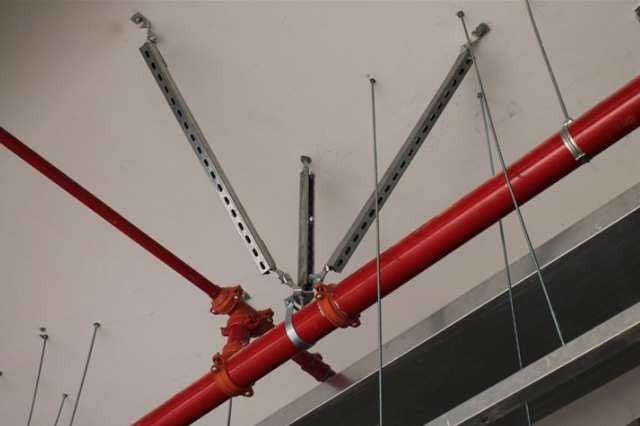

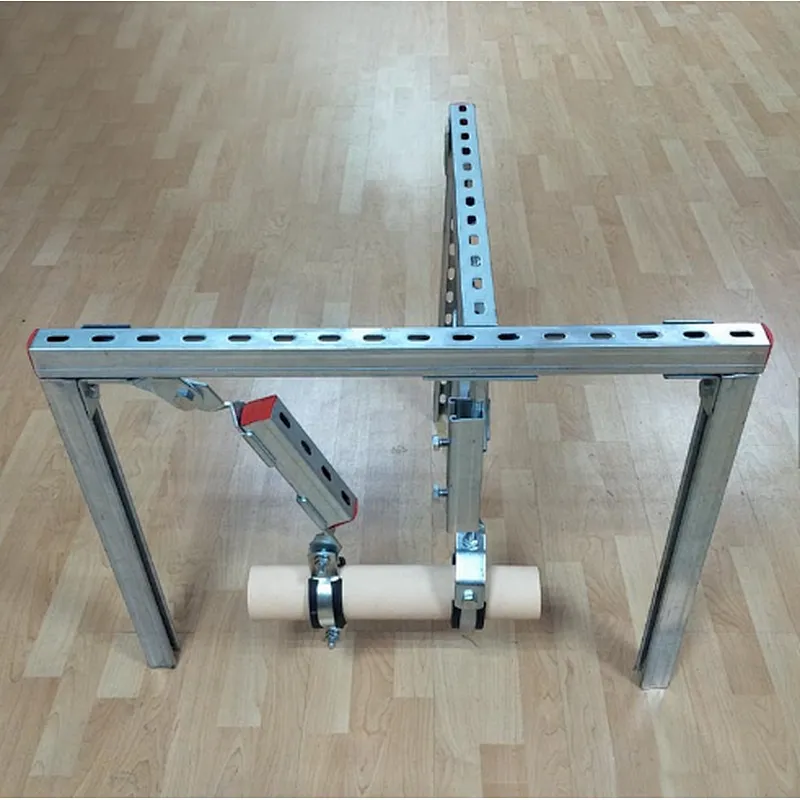

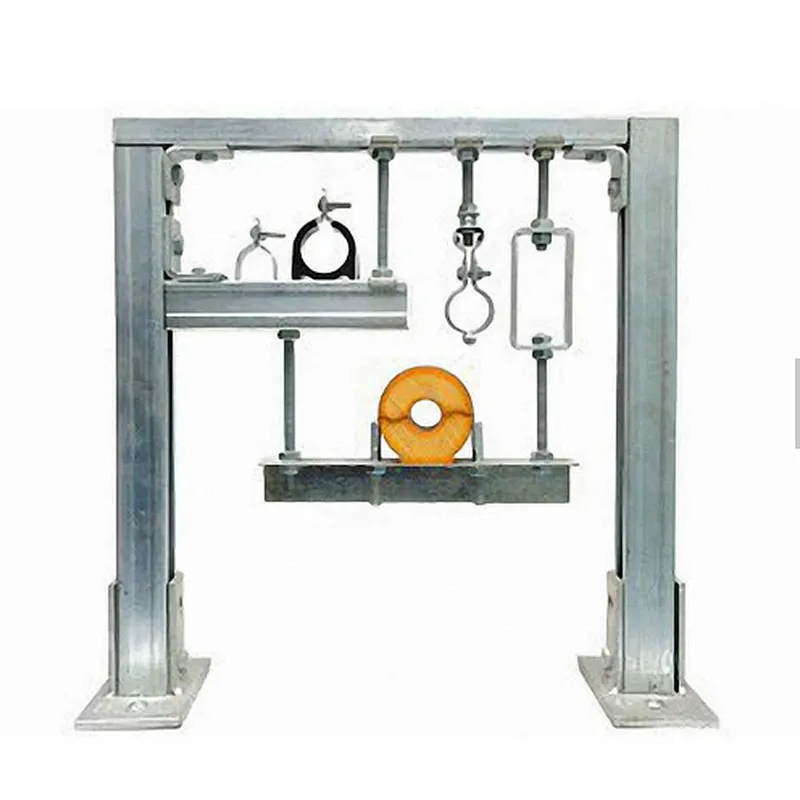

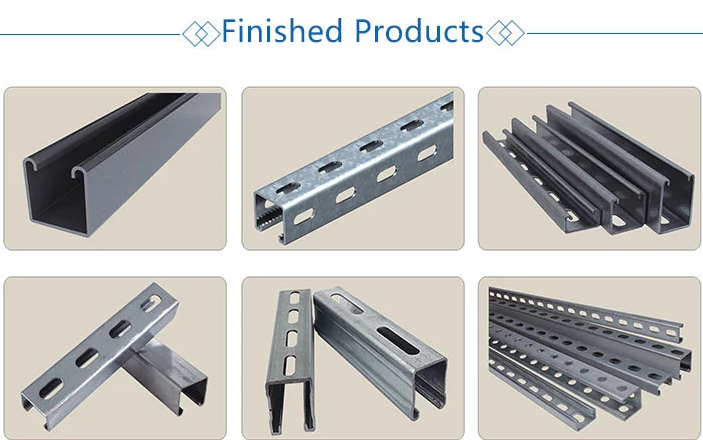

Here are some Anti-seismic brackets usages in daily life:

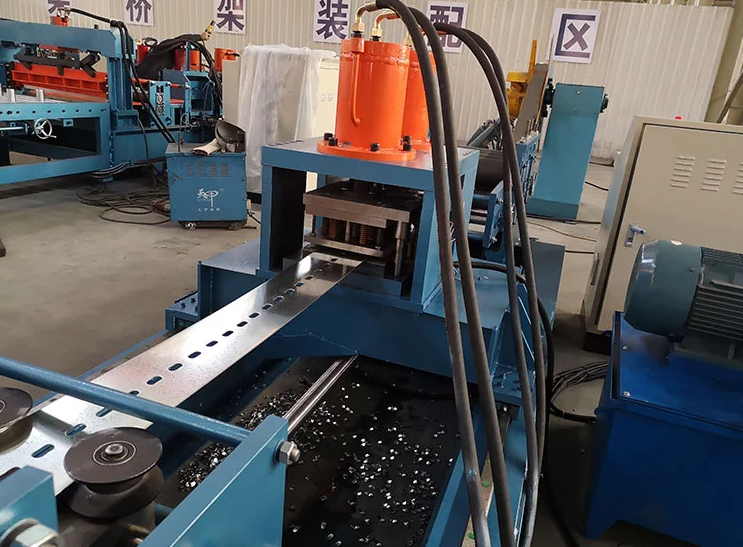

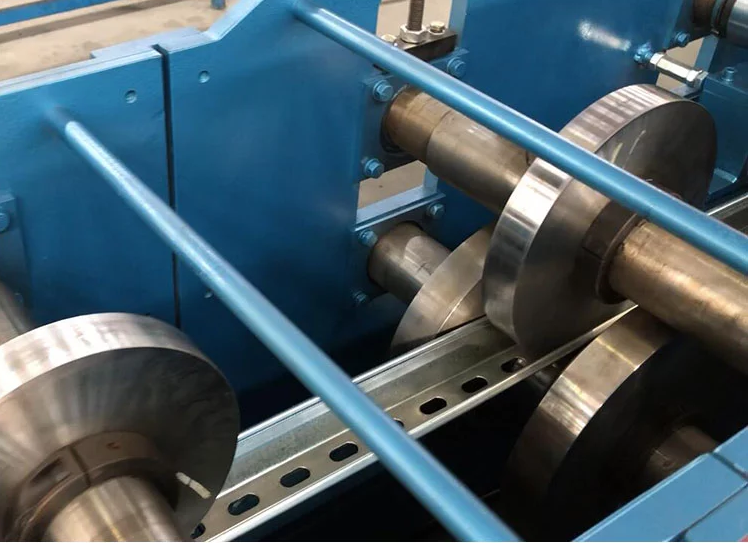

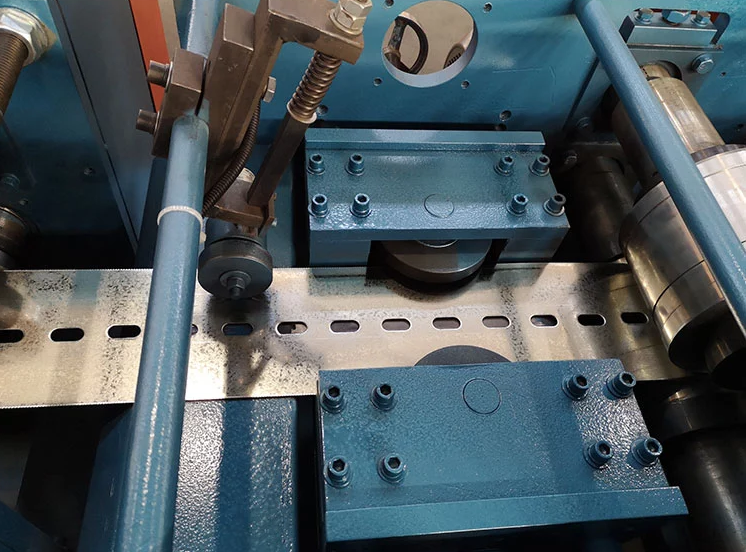

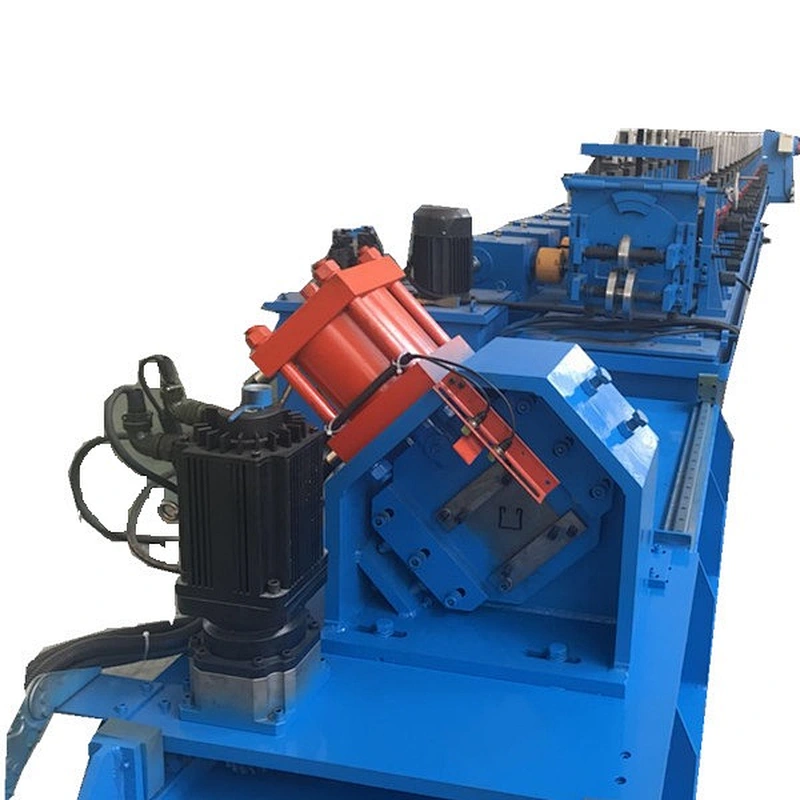

Here are more detail pictures of the Anti-vibration bracket C channel making machine:

For more information of Anti-vibration bracket C channel making machine, please contact us at any time.
