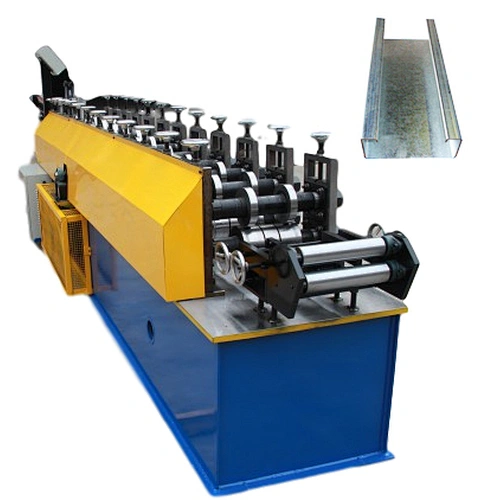

STEEL STUD ROLL FORMING MACHINE

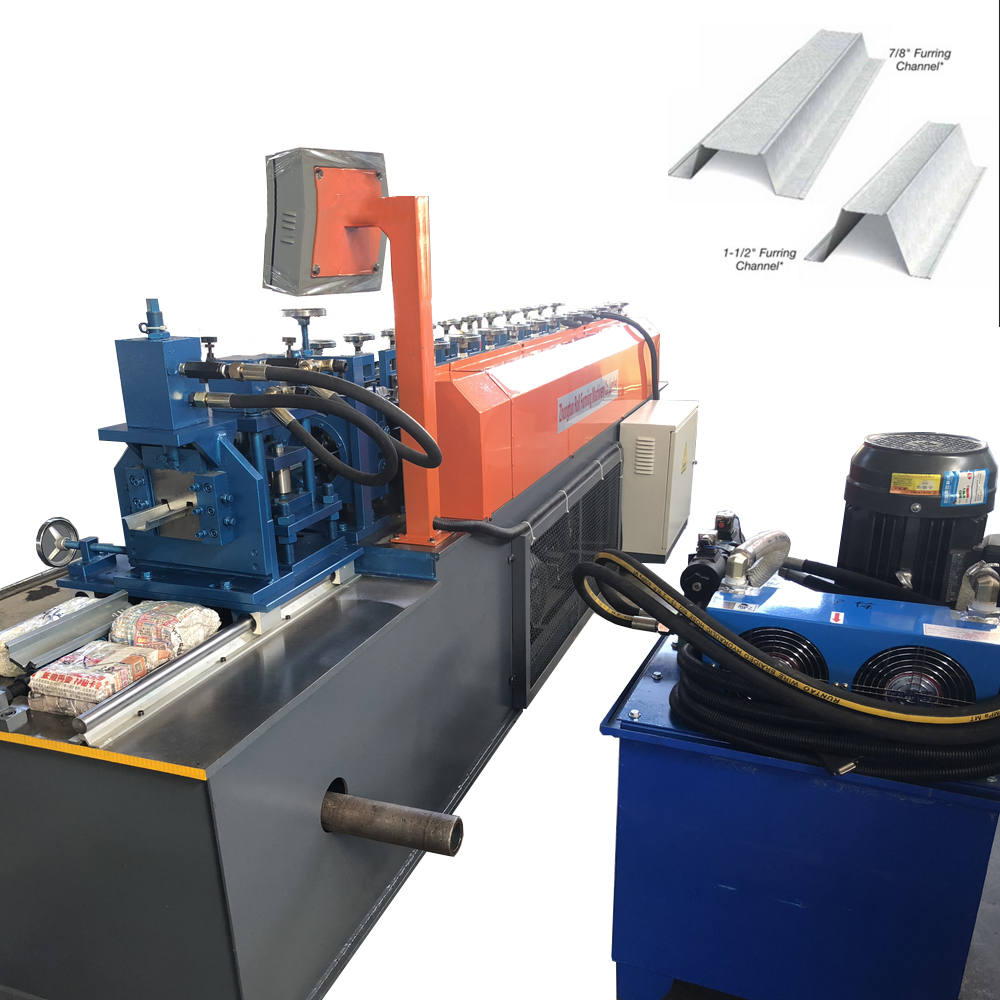

Steel Stud Roll Forming Machine is for produce steel studs for wall and roof as desired profiles. The machine can produce various sizes of steel studs.Steel Stud Roll Forming Machine
ZT is engaged in design and manufacture a full range of roll forming machines for steel studs and tracks. We have different design of roll formers for the machine for different requirements.What’s Steel Studs and Manufacturing equipment?
A steel stud is a vertical frame member in building’s wall of small cross section than a post. They are a fundamental element in frame building.In the past, studs are made of wood. But the wood need dry when used or problems may occur as the studs shrink and twist as they dry out. So steel studs are gaining popularity, especially for firewalls.
Now the factories purchase Steel Stud Roll Forming Machine for producing the steel studs, for the different production capacity, Believe Industry have below design of the steel studs roll former:
- Single Profile Roll Forming Machine
- Muti-Profile Roll Forming Machine
- Duplex Roll Forming Machine
- Manual adjust roll forming machine for muti-profile
Main Machine Components and Technical Specifications

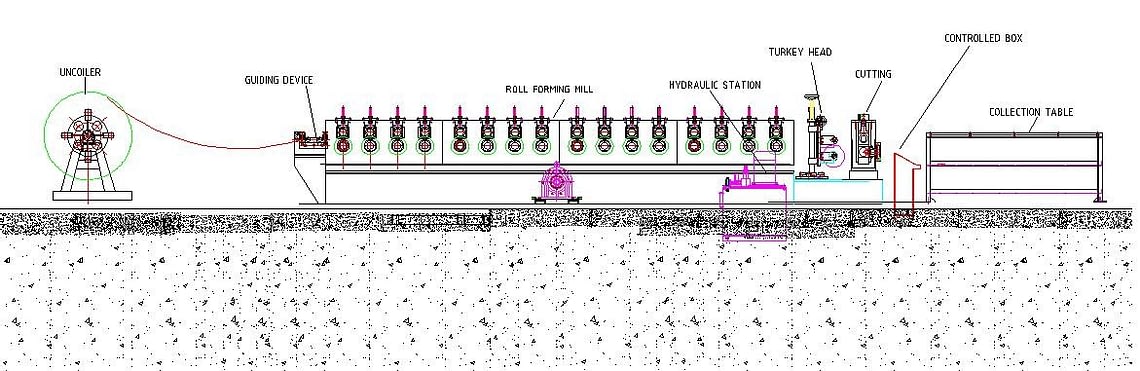

The Layout of Steel Stud Roll Forming Machine
3 Ton Electric Uncoiler
| Item | Description |
| Function | Support the coil strips and electric uncoiling the coil into the roll forming mill |
| Capacity | 3 Ton |
| Inner Diameter of the coil | 480-600 |
| Out Diameter of the coil | 1500mm Max |
| Uncoiling Motor Power | 1.5KW |
Steel Stud Roll Forming Mill
| Item | Description |
| Function | Roll forming the steel strips into profile with the desired length |
| Structure | Adopt Box Beam as the main base, guide pole type as the stands |
| Roll Station | 16 steps |
| Shaft Material | ASTM 1045, 80mm diameter |
| Spacer Material | ASTM, surface chromed, wall thickness is 8mm |
| Roller Material | GCR15, fine machining, surface chromed 0.05mm thickness |
| Driven Motor Power | 7.5KW |
| Roll Forming Speed | 15m/min |
| Driven Method | Chain and gear |
Hydraulic Cutting Device
| Item | Description |
| Function | Cut the steel studs into desired lengths, which is set by the controlled box |
| Cutting Mould Material | CR12, HRC 60-62 ° |
| Hydraulic Motor Power | 4KW |
| Hydraulic Working Presure | 12-16 MPA |
| Length Measuring | Omron encoder |
Controlled Box
| Item | Description |
| Function | The worker set the required data on the touch screen and it will display the status, and the machine will be automatic run. |
| Voltage Supply | 380V, 50HZ, 3 phase ( customized) |
| Touch Screen | MCGS or Siemens |
| PLC | Panasonic or Siemens |
| Encoder | Omron encoder |
| Frequency Inverter | Yaskawa |

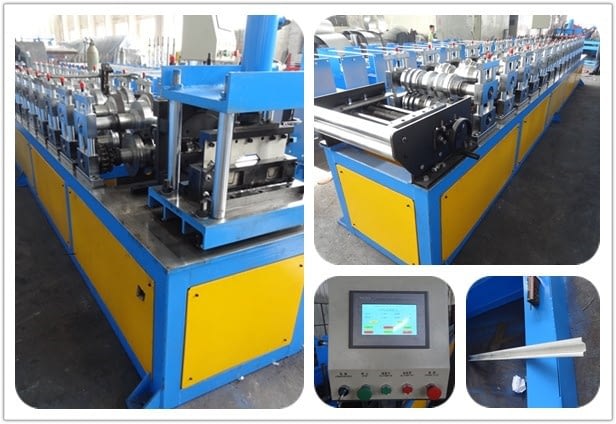

Photo Gallery
