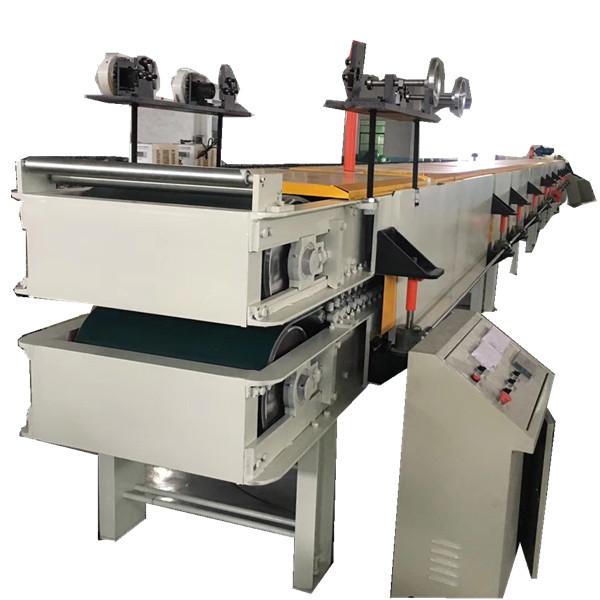

Continuous PU Garage Door Panel Production Line
Continuous PU Garage Door Panel Production Line is designed to produce the Garage Door Panel in batch fully automatically. Garage door system, surface material we use prepainted galvanized steel sheet and the material thickness from 0.326mm-0.5mm;Thermal insulation material: Polyurethane foam; PU density: 45kg/CBM; Panel thickness could be 38mm, 50mm available; Panel width could be 430mm-610mm; Panel length: According to custom demands, engineering requirements, and shipment conditions;
The Advantages of sectional garage door:
* Smooth running
* Spring safety device
* Secure locking
* Attractive door handle
* Quiet running
* Finger protection on the side cover, roller, panel joint

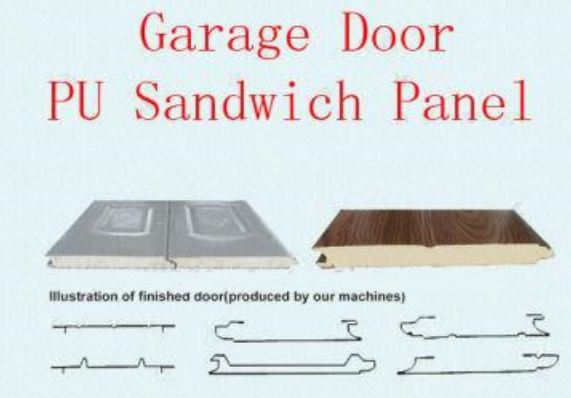

So based on the needs, Zhongtuo designed the Continuous PU Garage Door Panel Production Line. We take the following drawing profile for example:
Main component of the PU Garage Door Panel Production Line:
Continuous PU Garage Door Panel Production Line working flow:

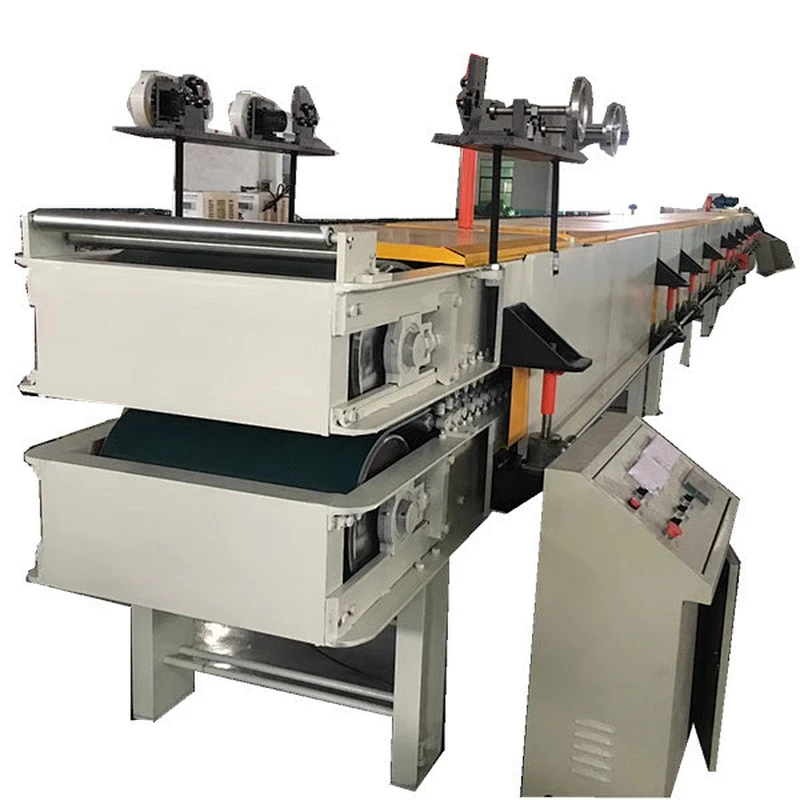

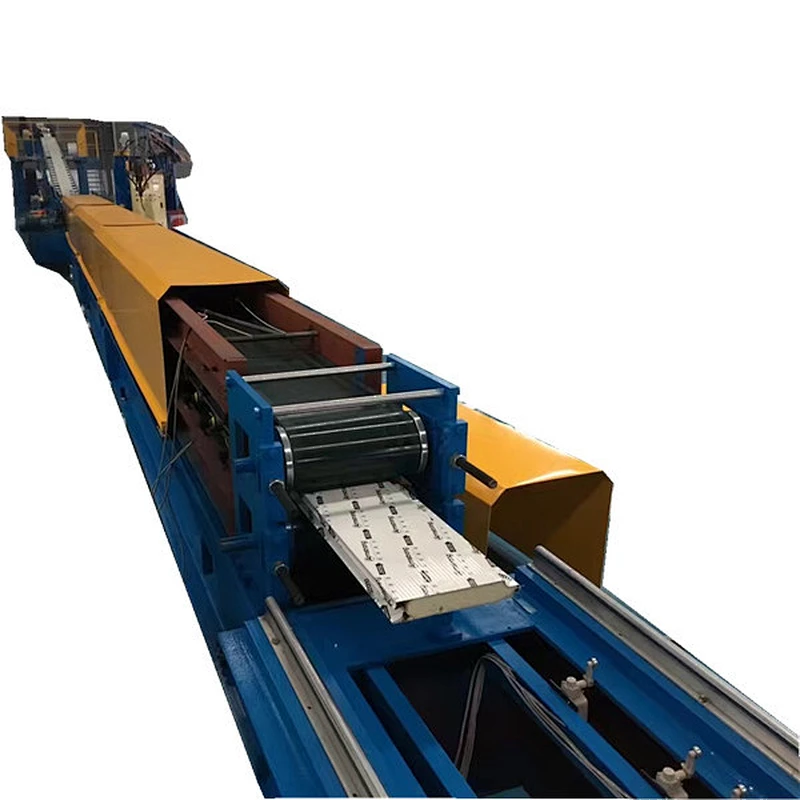

Whole working production line pictures:
PU Garage Door Panel Usage:
Continuous PU Garage Door Panel Production Line is designed to produce the Garage Door Panel in batch fully automatically. Garage door system, surface material we use prepainted galvanized steel sheet and the material thickness from 0.326mm-0.5mm;Thermal insulation material: Polyurethane foam; PU density: 45kg/CBM; Panel thickness could be 38mm, 50mm available; Panel width could be 430mm-610mm; Panel length: According to custom demands, engineering requirements, and shipment conditions;
The Advantages of sectional garage door:
* Smooth running
* Spring safety device
* Secure locking
* Attractive door handle
* Quiet running
* Finger protection on the side cover, roller, panel joint
So based on the needs, Zhongtuo designed the Continuous PU Garage Door Panel Production Line. We take the following drawing profile for example:
Main component of the PU Garage Door Panel Production Line:
| NO. | name | quantity |
| Main roll former | ||
| 1 | Un-coiler (5 tons ) | 2 |
| 2 | Embossing and firm machine | 2 |
| 3 | Automatic feeder and leveler (N.C) | 1 |
| 4 | Press machine(200ton) | 1 |
| 5 | Square mold | 1 |
| 6 | Upper roll former | 1 |
| 7 | Mark machine (N.C) | 1 |
| 8 | Down panel roll former | 2(two type) |
| 9 | Double layer construction platform | 1 |
| 10 | Double bridge device and conveyor | 1 |
| 11 | Other conveyor | 1 |
| 12 | Hydraulic system | 1 |
| 13 | Electrical control system | 1 |
 | ||
| 2. PRE-HEATING SYSTEM | ||
| 1 | Heating house | 1 |
| 2 | pre-heating system | 1 |
| 3 | electrical control system | 1 |
| 3.HIGH PRESSURE FOAM MACHINE | ||
| 1 | High pressure continuous foam machine | 1 |
| 2 | Pursing output device | 1 |
| 3 | Electrical control system | 1 |
| NO. | Name | Quantity |
| 4. DOUBLE BELT SYSTEM | ||
| 1 | Double belts system（24M） | 1 |
| 2 | Chain supporting system of two side | 1 |
| 3 | Side-chain system | 1 |
| 4 | Heating machine for double belts | 1 |
| 5 | Electrical control system | 1 |
 | ||
| Thickness and plastic mould | ||
| 1 | Mould & Plastic mould blade | 1 |
| 6. CUTTING SYSTEM | ||
| 1 | Cutting saw blade | 1 |
| 2 | Conveyor with output table | 1 |
| 3 | Electrical control system | 1 |
 | ||

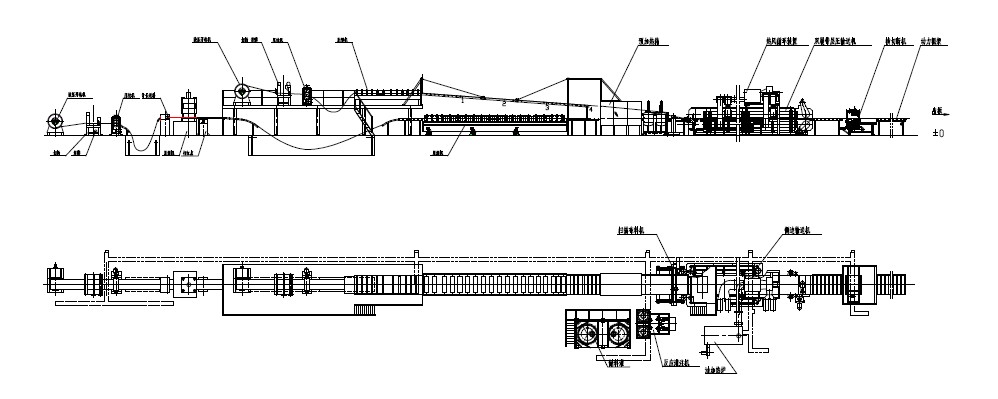

Continuous PU Garage Door Panel Production Line working flow:

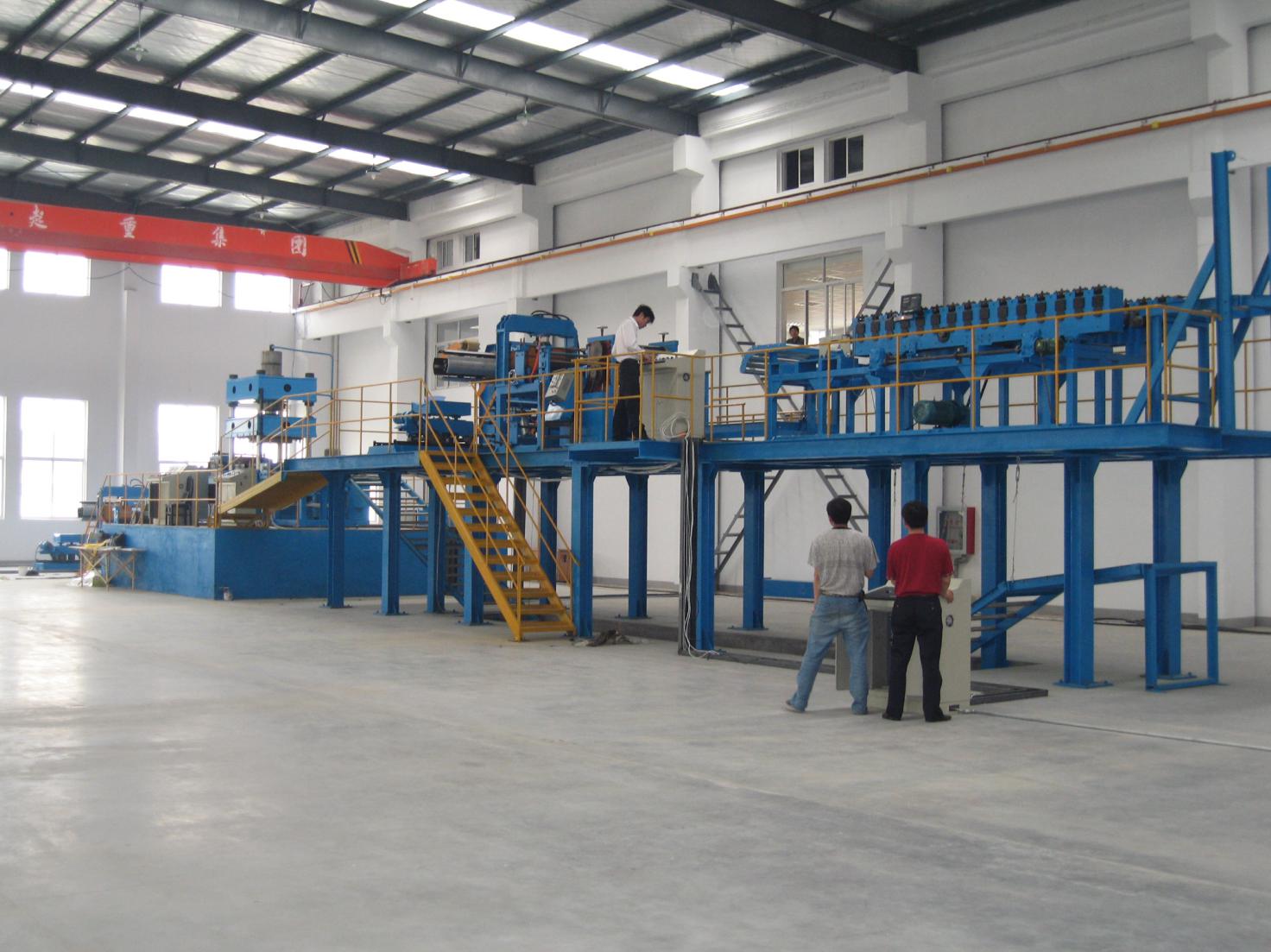

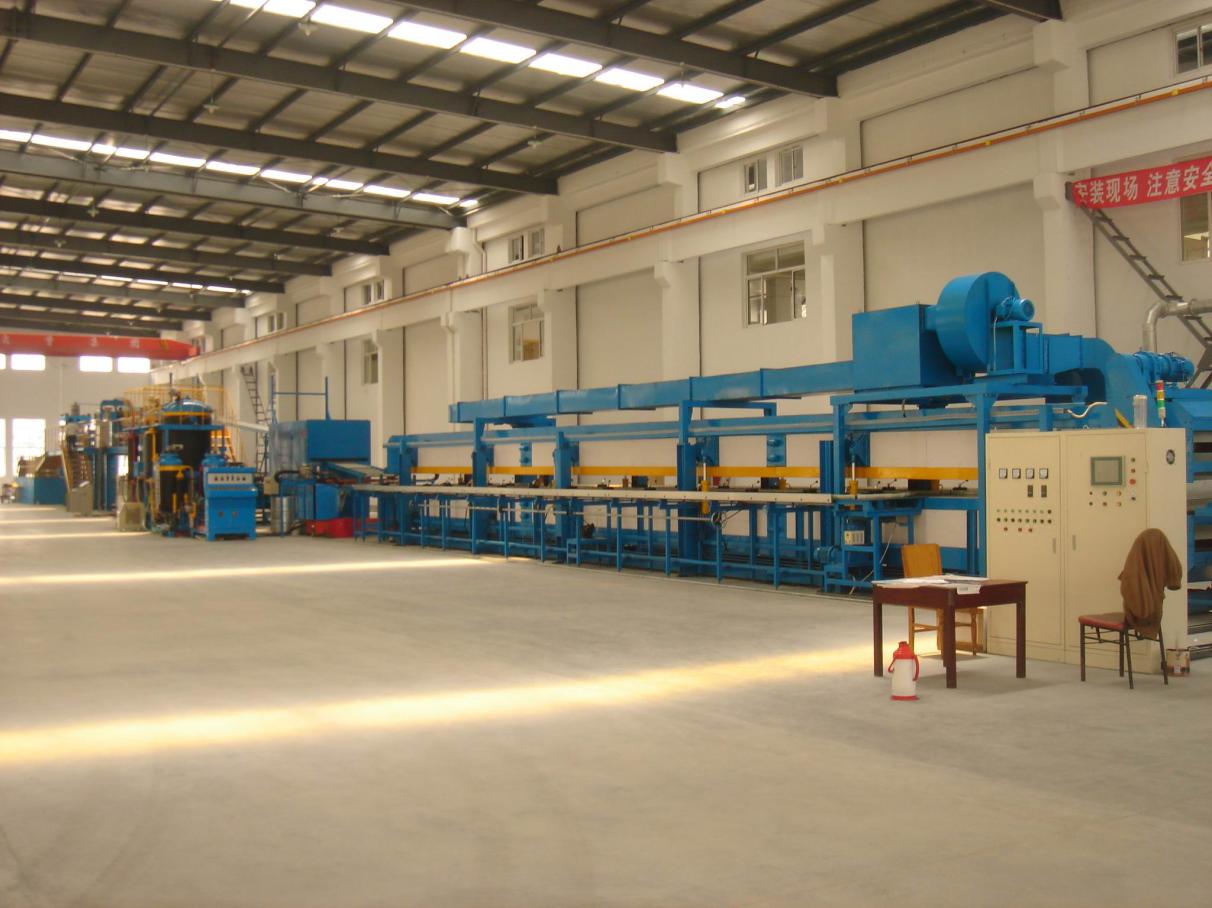

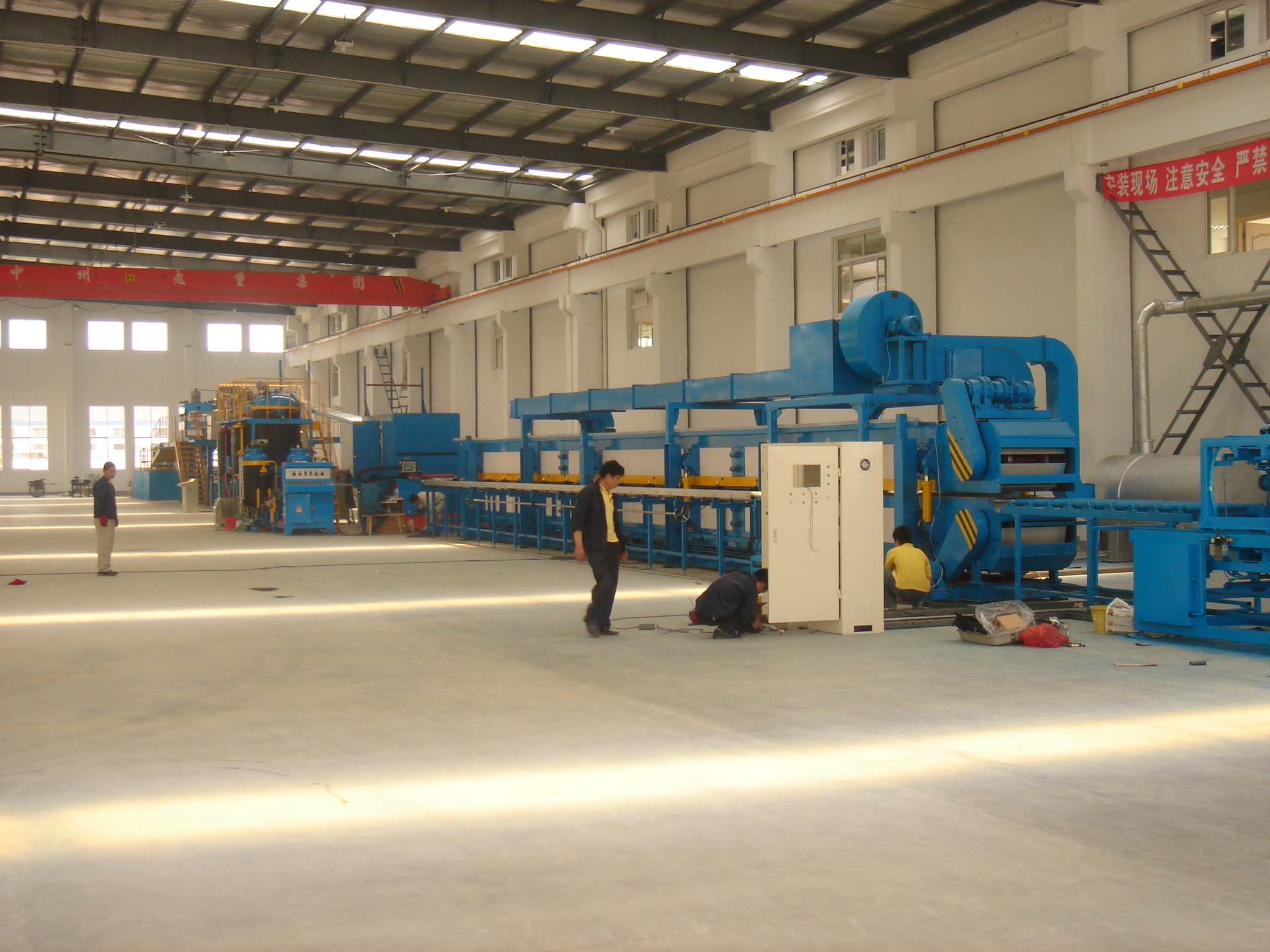

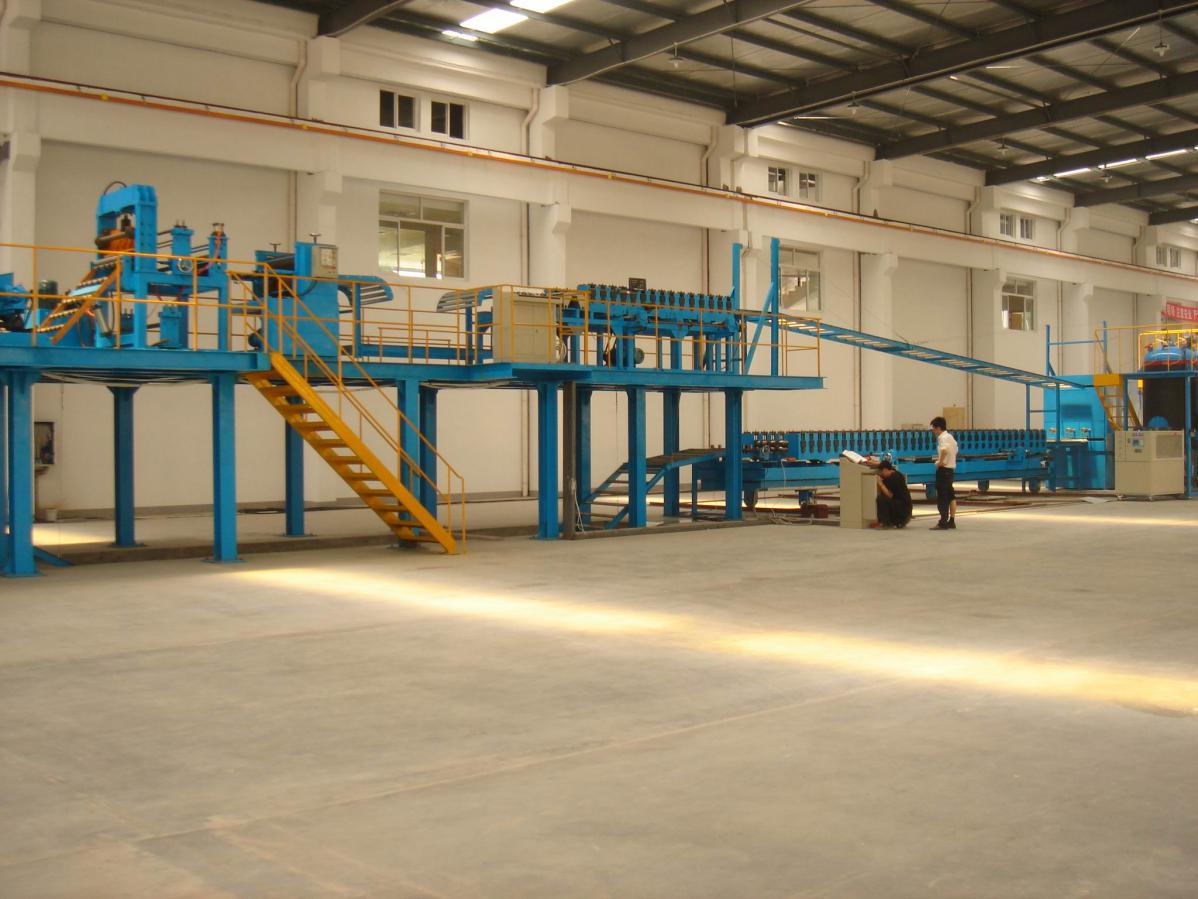

Whole working production line pictures:

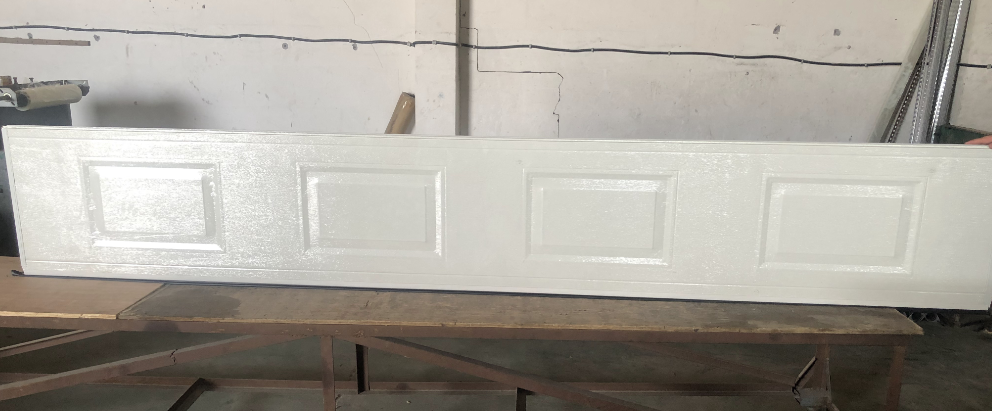

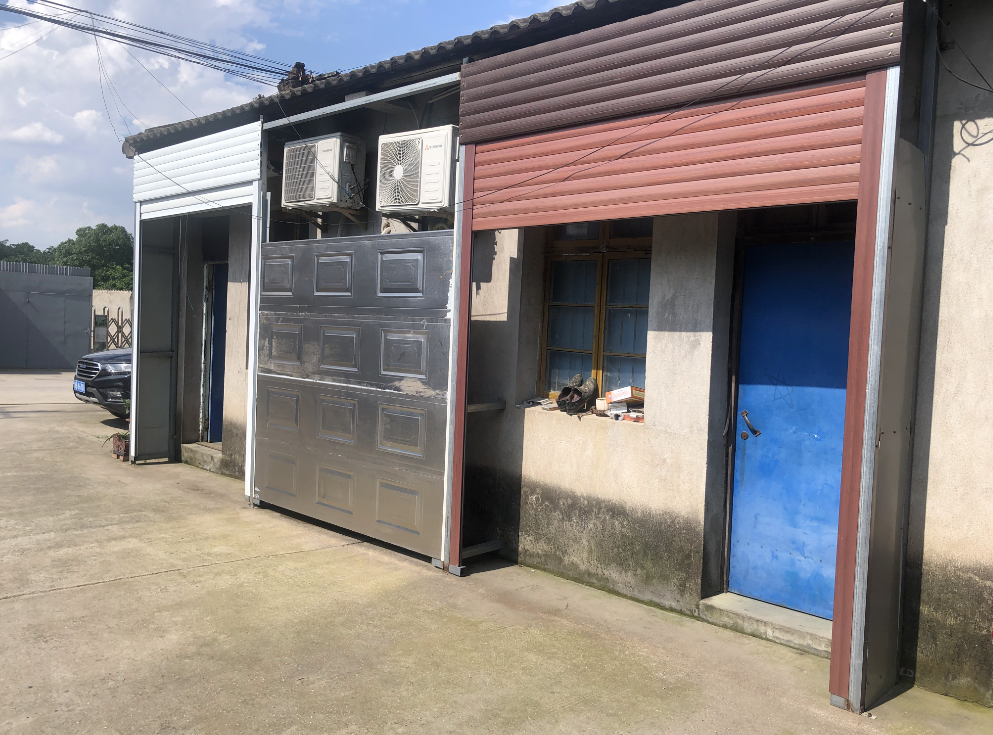

PU Garage Door Panel Usage:
