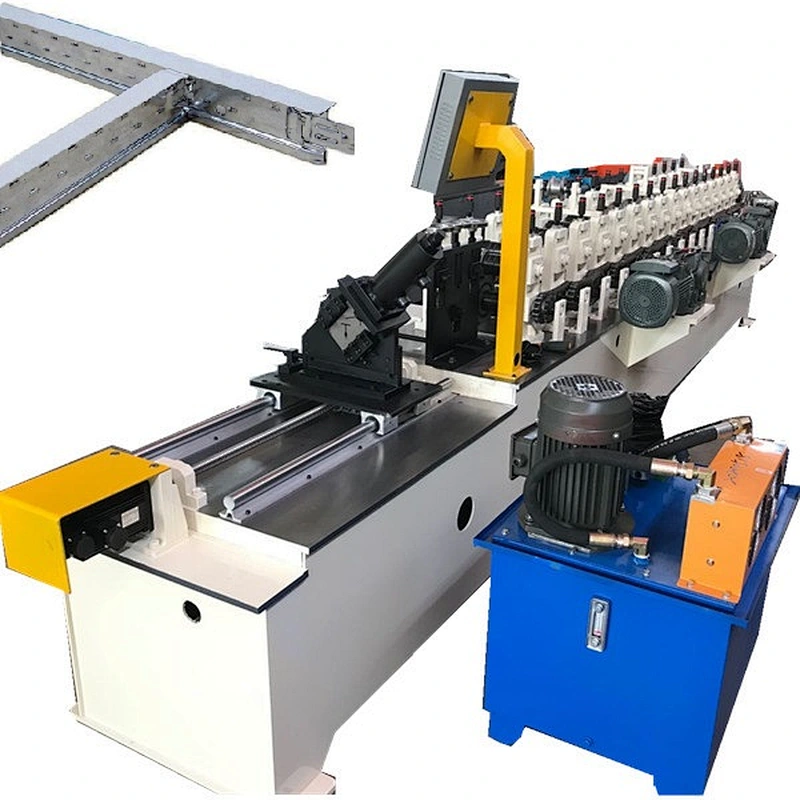

Ceiling T Grid Rolling Forming Machine

Model NO.: Lee2021093002

Quantity:

Product Description

Ceiling T Grid Rolling Forming Machine

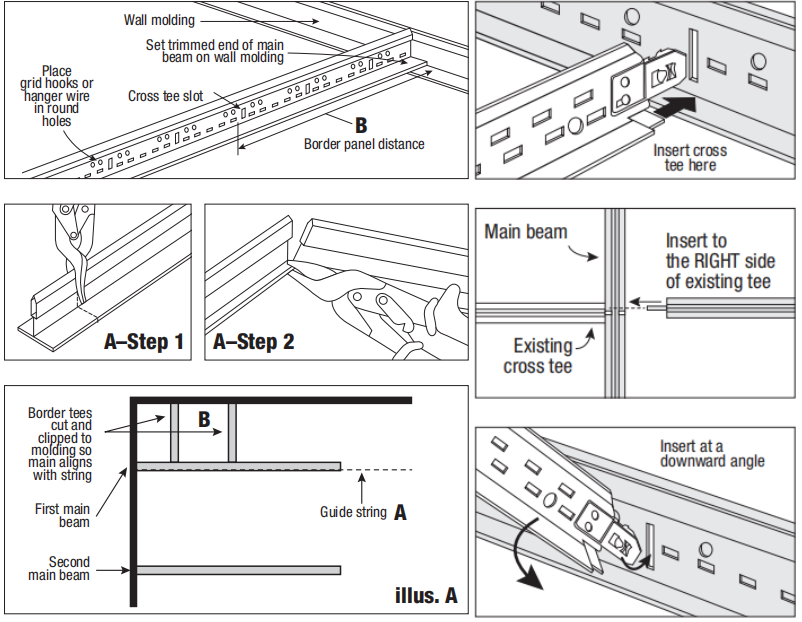

Ceiling T gird system includes main beams, wall molding, and cross tees. It indicates a stab connection on the cross tees. This feature provides a secure connection and fast, accurate alignment confirmed with an audible click. This is the most commonly used and available grid system. By this way, the ceiling T Grid Rolling Forming Machine now is quite popular. On our website, we will introduce main T gird rolling forming machine, cross T gird rolling forming machine, and other related elements one by one.

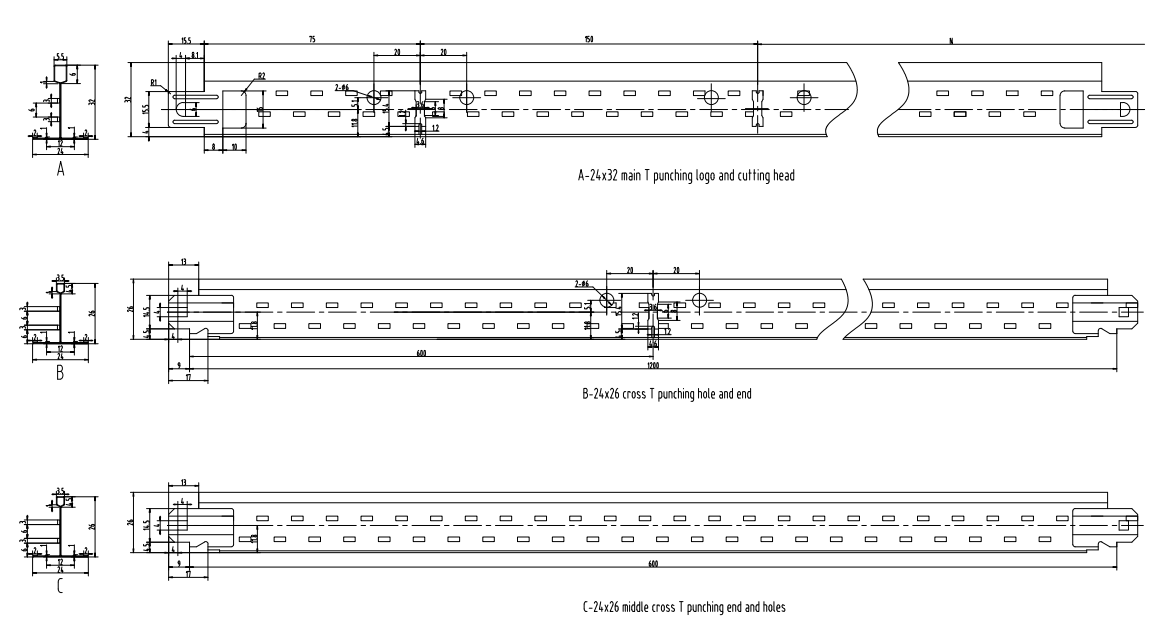

Take the following drawing profile for example:

Ceiling T Grid Rolling Forming Machine design:

Ceiling T Grid Rolling Forming Machine Parameters for your reference
Decoiler each machine Two sets	Weight	150kg
	Steel coil ID	450-550（mm)
	Steel coil OD	1500（mm)
Roll forming machine	Rollers	14-18 Roller station, Material:Cr12mov roller inner diameter:Φ40mm， roller outer diameter:minΦ90 heat treatment hardness:HRC58-62
	Transmission	The main drive uses chain drive, roll between the use of gear transmission
	Middle Plate	Thickness 25mm, grinding six-sided, high-precision boring from processing
Hydraulic system	Motor Power	7.5kw
Cutting system	Cutting System	Servo tracking system
Mold	Mold Material	SKD11

Ceiling T Grid Rolling Forming Machine

1)Easy for installation, in this special time our machine no need engineer, you can handle the installation yourself.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Full automatic production line and semi-automatic production line for customer choose.
4) The speed of the machine can reach 25 to 30 meter per minute.
5) Running in a high automation andintellectualism,no pollution
6)The molds are adjustable, so it can make adjustable length with adjustable punching type.
7) Punching per length, accurate mold processing, so we can make sure the punching 100% accurate.
More details of the Ceiling T Grid for your reference:

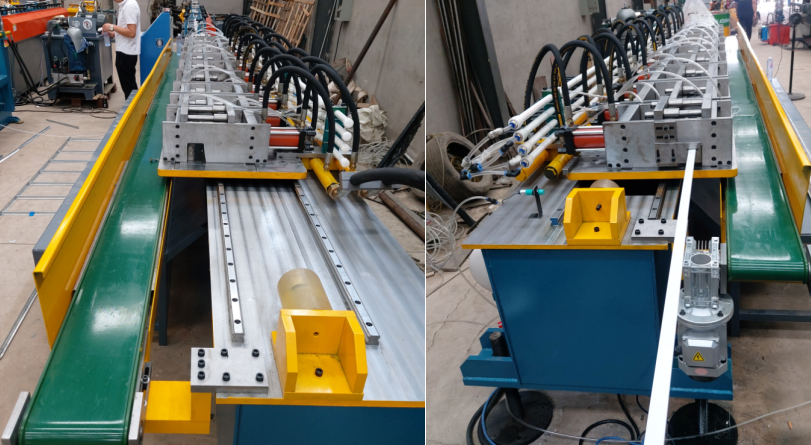

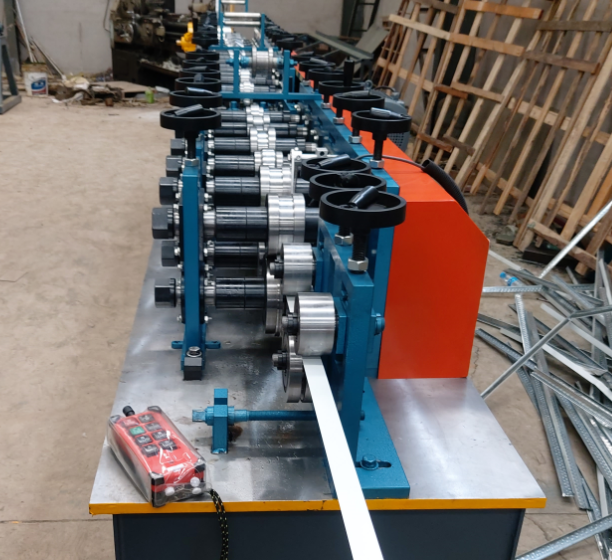

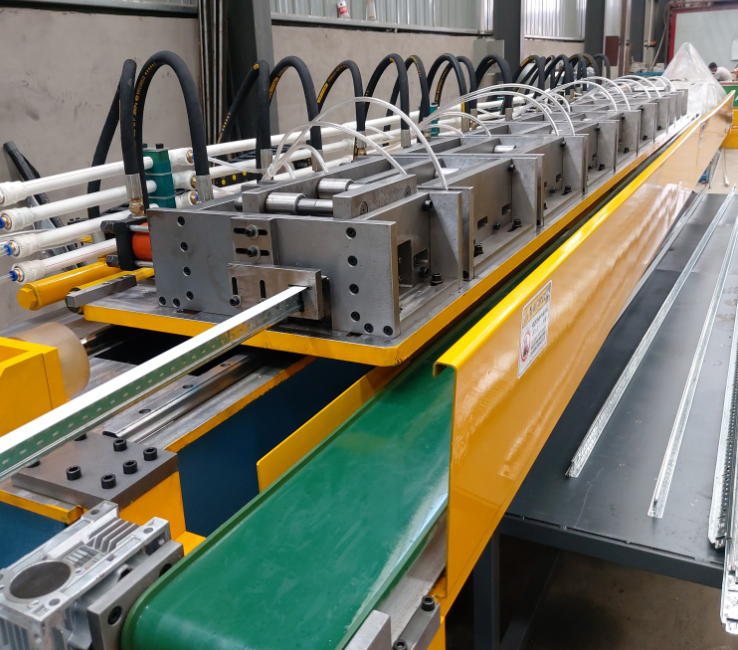

Main rolling forming machine, we design with pillar frame, accurate frame processing:
