Half round Gutters rolling forming machine

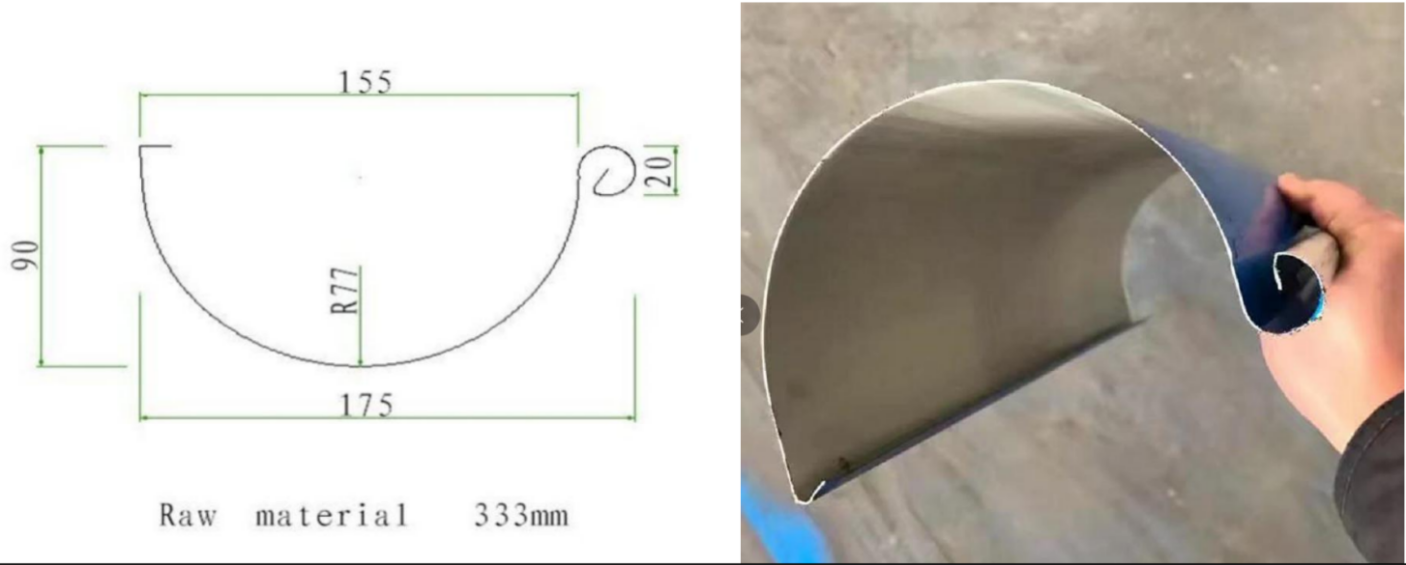

Half round Gutters rolling machine is designed to make the gutters which are attached to the roof edges and used to draw water down and away from the house and its foundation. Most gutters consist of sections of gutter, drop outlets and downspouts. Gutters can be constructed out of aluminum, copper, galvalume, galvanized steel, copper penny aluminum, freedom gray copper, weathered zinc, copper plus, designer copper aluminum, lead coated copper, paint grip steel. Here are the drawing profile we made before for your reference:
Half round Gutters rolling forming machine:

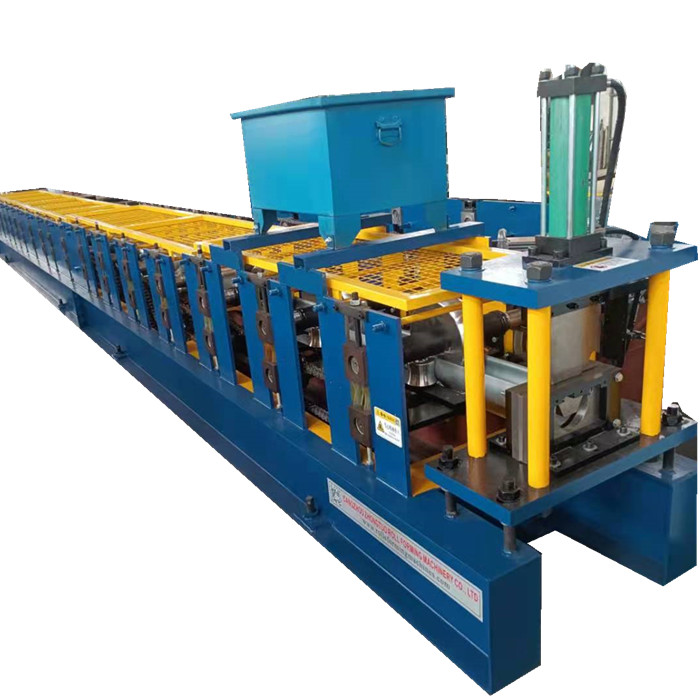

Main Components of Half round Gutters rolling forming machine:
3T hydraulic Decoiler (3 Ton )----------------------------------1 Set
Guiding Rolls-------------------------------------------------------2 Pieces
Pre-cutting/Feeding Platform----------------------------------1 Set
PLC Control System-----------------------------------------------1 Unit
Hydraulic Pump Station------------------------------------------1 Unit
Hydraulic Cutting Device-----------------------------------------1 Set
Manual Receiving Table-------------------------------------------1 Set
Half round Gutters rolling forming machine parameters:
|
Base Frame Structure |
350 H-beam welded |
|
Sidewall thickness |
16mm A3 Carbon Steel seamless welded with base frame |
|
Roller Stations |
20 forming units(as you use cooper so we enlonger the roller station) |
|
Connect Bar |
Diameter 25mm galvanized steel rod |
|
Roller Shaft(Solid) |
70mm-0.01~-0.03 with Key-way |
|
Shaft Material(Hard) |
High grade 45# steel，lathe then polishing smoothly |
|
Roller Material(Hard) |
High grade 45# steel，CNC lathe then chromed plated 0.05mm |
|
Bearing type |
standard 6210(Wanxiang,Wuxi), single units inside wall box |
|
Screw and bolts |
Common 8.8 standard |
|
Transmission method |
0.6 inch (Jindun,Hangzhou) |
|
Driving motor |
4.0KW(Lichao,Shanghai) |
|
Motor reducer |
4.0KW (Wujin,Changzhou) |
|
Forming speed |
15-20m/min |
Features of Gutter Roll Forming Machine:
• Polyurethane Drive Rollers
• Stainless Steel Forming Rollers
• Push Button RUN/JOG Controls at Entry and Exit Ends
• Forward Pulling, Easy Cut Shear
• Power Interruption Safety Circuit
• Two 360º Rotatable Reel Stands with Easy Lift Reels
• Welded Tubular Steel Frame

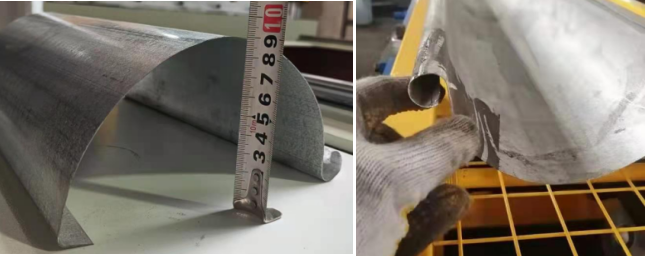

Here are more details of testing profile for your reference:

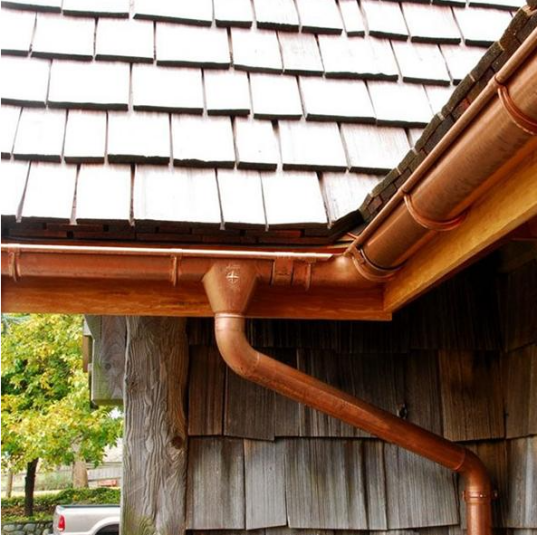

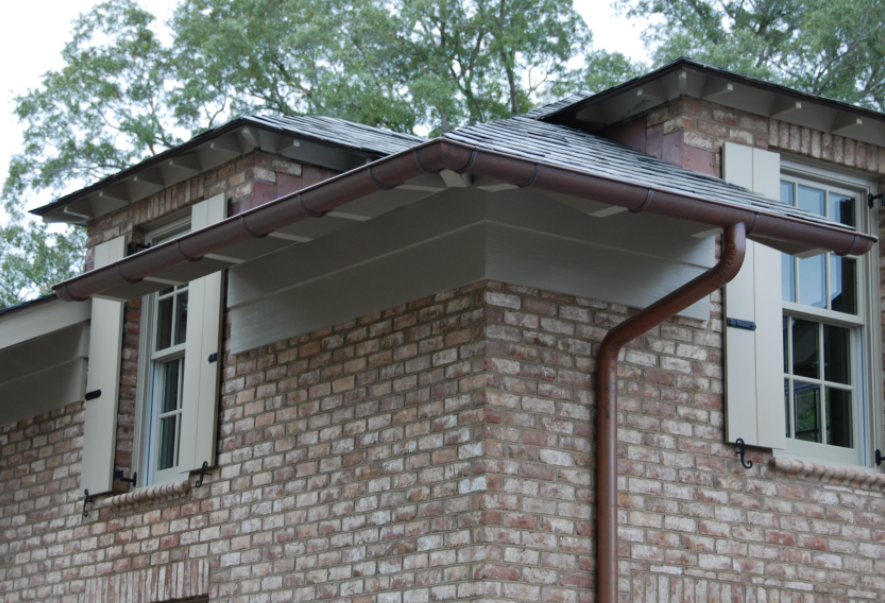

Here are some installation pictures of gutters for your reference:
Here is the machine working videos for your reference:
